Heavy-Duty Flexible Cable
H07RN-F construction supports portable power routes exposed to mechanical stress and outdoor conditions.

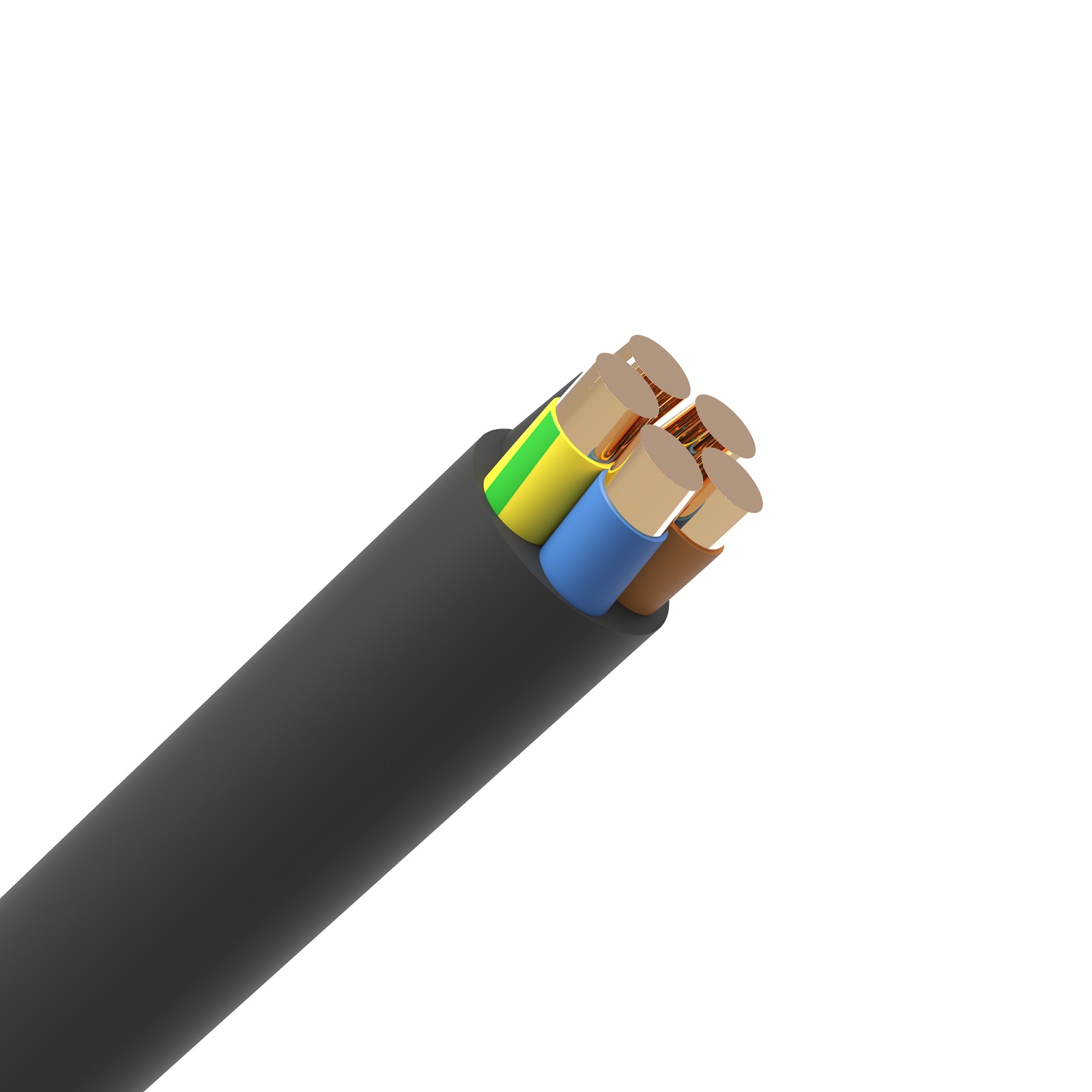

H07RN-F Rubber Cable
H07RN-F Rubber Cable for flexible industrial, outdoor and equipment connection routes.
H07RN-F Rubber Cable is selected for flexible rubber-sheathed applications where outdoor use, oil/moisture exposure and mechanical flexibility are part of the requirement.
Product Overview
H07RN-F Rubber Cable should be selected according to the actual project route, not by product name alone. Before quotation, review voltage rating, flexibility level, sheath compound, movement duty, abrasion exposure and equipment connection method. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- outdoor portable equipment and heavy-duty flexible power supply
- construction site, workshop and industrial machinery connections
- moisture, oil, abrasion or weather-exposed flexible cable routes
- projects requiring H07RN-F or IEC/EN rubber cable documentation
Construction
Flexible copper conductor with rubber insulation and rubber or neoprene sheath according to cable type. Conductor class, sheath compound, voltage grade, oil/weather resistance and bending requirements should be checked before production.
Marking on Cable
FARWALK CABLE – H07RN-F Rubber Cable – [standard] – [voltage] – [core x size] – [year] – [meter mark]
Cable Identification
- Core color, sheath color and marking can be reviewed according to application and standard route.
- Flexible cable identification should match voltage grade, conductor size and cable type.
Standards
- IEC 60245
- EN 50525
- BS 6500 / BS 7919 where applicable
Main Features
Rubber Insulation and Sheath
Rubber materials provide flexibility, abrasion resistance and weather performance for industrial applications.
EN / IEC Route Review
For H07RN-F Rubber Cable, core count, conductor size and voltage rating should follow IEC 60245 or EN 50525 project requirements.
Product Selection Guide
Duty Level
Confirm whether the cable is light-duty, heavy-duty, welding, flat moving or portable industrial service.
Movement Requirement
Review bending, dragging, repeated handling, festoon movement or equipment travel before choosing construction.
Environment
Check oil, moisture, sunlight, abrasion, temperature and chemical exposure before selecting sheath material.
Size and Voltage
Match conductor size, voltage rating and core count to equipment load, route length and duty cycle.
Technical Data Overview
| No. of Cores x Cross Section (mm²) | Nominal Insulation Thick. (mm) | Nominal Sheath Thick. (mm) | Approx. Overall Dia. (mm) | Approx. Weight (kg/km) | Current Rating in Air (Amps) |
| Multi-Core H07RN-F Flexible Rubber – 450/750V | Multi-Core H07RN-F Flexible Rubber – 450/750V | Multi-Core H07RN-F Flexible Rubber – 450/750V | Multi-Core H07RN-F Flexible Rubber – 450/750V | Multi-Core H07RN-F Flexible Rubber – 450/750V | Multi-Core H07RN-F Flexible Rubber – 450/750V |
| 2 x 1.5 | 0.8 | 1.3 | 10.5 | 155 | 18 |
| 3 x 1.5 | 0.8 | 1.4 | 11.2 | 190 | 18 |
| 3 x 2.5 | 0.9 | 1.5 | 13.2 | 275 | 26 |
| 4 x 2.5 | 0.9 | 1.7 | 14.5 | 340 | 26 |
| 5 x 2.5 | 0.9 | 1.8 | 16.0 | 415 | 26 |
| 3 x 4.0 | 1.0 | 1.8 | 15.5 | 390 | 34 |
| 4 x 4.0 | 1.0 | 1.9 | 17.0 | 485 | 34 |
| 4 x 6.0 | 1.0 | 2.0 | 19.5 | 650 | 44 |
| 4 x 10 | 1.2 | 2.5 | 24.5 | 1050 | 61 |
| 4 x 16 | 1.2 | 2.8 | 28.5 | 1480 | 82 |
| 4 x 35 | 1.4 | 3.5 | 38.5 | 2850 | 135 |
