Light-Duty Flexible Cable
H05RN-F is reviewed for lighter portable equipment and indoor/outdoor flexible connections.

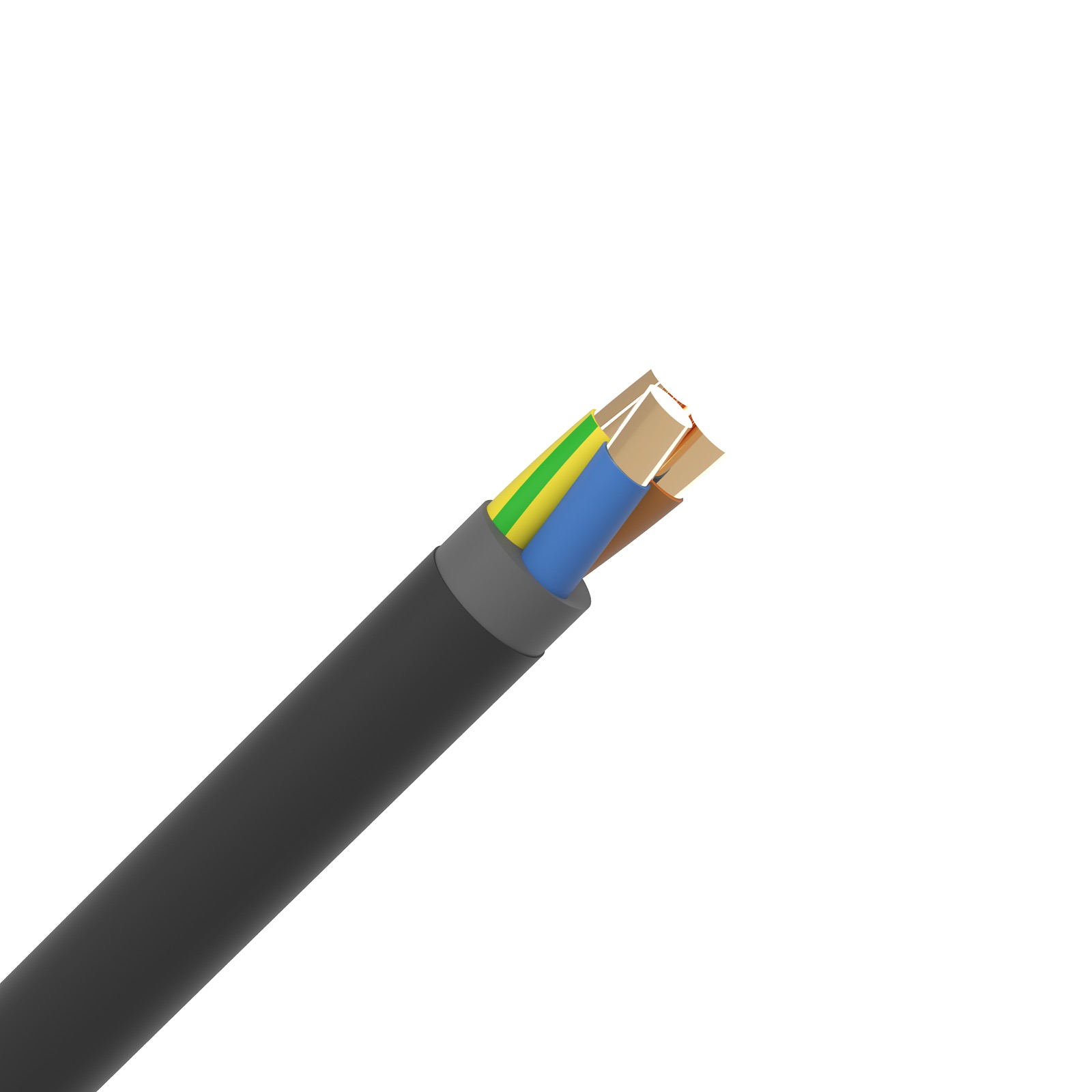

H05RN-F Flexible Rubber Cable
H05RN-F Flexible Rubber Cable for flexible industrial, outdoor and equipment connection routes.
H05RN-F Flexible Rubber Cable is selected for flexible rubber-sheathed applications where outdoor use, oil/moisture exposure and mechanical flexibility are part of the requirement.
Product Overview
H05RN-F Flexible Rubber Cable should be selected according to the actual project route, not by product name alone. Before quotation, review voltage rating, flexibility level, sheath compound, movement duty, abrasion exposure and equipment connection method. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- light to medium-duty portable equipment connections
- indoor or protected flexible power routes
- appliance, tool and temporary power connections where H05RN-F route is specified
- projects requiring smaller rubber cable sizes and flexible handling
Construction
Flexible copper conductor with rubber insulation and rubber or neoprene sheath according to cable type. Conductor class, sheath compound, voltage grade, oil/weather resistance and bending requirements should be checked before production.
Marking on Cable
FARWALK CABLE – H05RN-F Flexible Rubber Cable – [standard] – [voltage] – [core x size] – [year] – [meter mark]
Cable Identification
- Core color, sheath color and marking can be reviewed according to application and standard route.
- Flexible cable identification should match voltage grade, conductor size and cable type.
Standards
- IEC 60245
- EN 50525
- BS 6500 / BS 7919 where applicable
Main Features
Rubber Sheath Protection
The sheath supports bending and handling where a lighter-duty rubber cable is acceptable.
Application Limit Check
For H05RN-F Flexible Rubber Cable, voltage rating, conductor size and mechanical duty should be confirmed before replacing H07RN-F routes.
Product Selection Guide
Duty Level
Confirm whether the cable is light-duty, heavy-duty, welding, flat moving or portable industrial service.
Movement Requirement
Review bending, dragging, repeated handling, festoon movement or equipment travel before choosing construction.
Environment
Check oil, moisture, sunlight, abrasion, temperature and chemical exposure before selecting sheath material.
Size and Voltage
Match conductor size, voltage rating and core count to equipment load, route length and duty cycle.
Technical Data Overview
| No. of Cores x Cross Section (mm²) | Nominal Insulation Thick. (mm) | Nominal Sheath Thick. (mm) | Approx. Overall Dia. (mm) | Approx. Weight (kg/km) | Current Rating @ 30°C (Amps) |
| Flexible Multi-Core H05RN-F Rubber – 300/500V | Flexible Multi-Core H05RN-F Rubber – 300/500V | Flexible Multi-Core H05RN-F Rubber – 300/500V | Flexible Multi-Core H05RN-F Rubber – 300/500V | Flexible Multi-Core H05RN-F Rubber – 300/500V | Flexible Multi-Core H05RN-F Rubber – 300/500V |
| 2 x 0.75 | 0.6 | 0.8 | 6.2 | 55 | 6 |
| 3 x 0.75 | 0.6 | 0.9 | 6.8 | 72 | 6 |
| 2 x 1.0 | 0.6 | 0.9 | 6.8 | 68 | 10 |
| 3 x 1.0 | 0.6 | 0.9 | 7.2 | 85 | 10 |
| 2 x 1.5 | 0.8 | 1.0 | 8.6 | 110 | 16 |
| 3 x 1.5 | 0.8 | 1.1 | 9.2 | 135 | 16 |
| 4 x 1.5 | 0.8 | 1.1 | 10.2 | 165 | 16 |
