Flat Moving Route
Flat construction helps fit crane, hoist, festoon and moving equipment routes where bending direction is controlled.

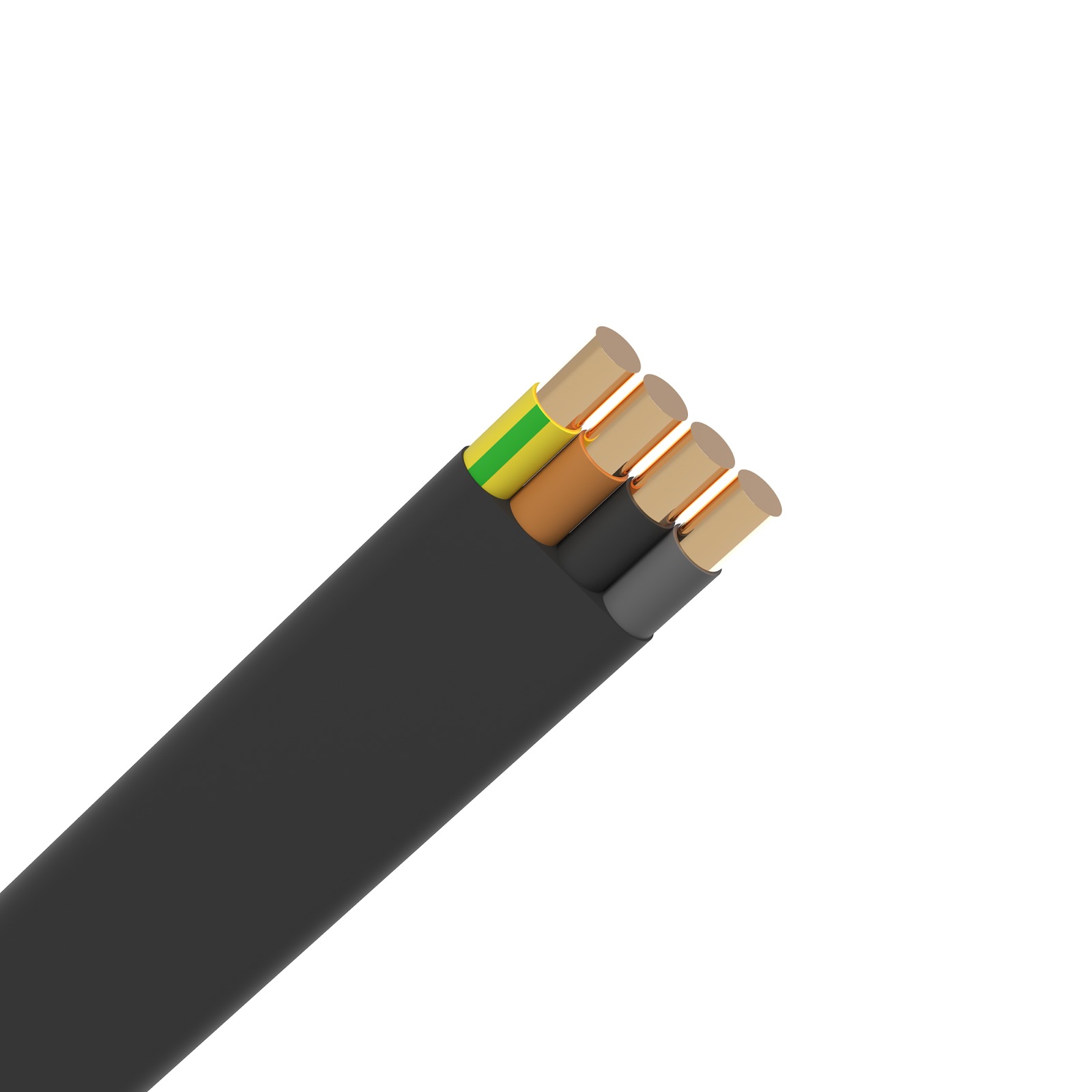

Flat Rubber Cable
Flat Rubber Cable for flexible industrial, outdoor and equipment connection routes.
Flat Rubber Cable supports flat flexible cable routes where repeated movement, space limitation or crane/hoist style installation requires a flat profile.
Product Overview
Flat Rubber Cable should be selected according to the actual project route, not by product name alone. Before quotation, review voltage rating, flexibility level, sheath compound, movement duty, abrasion exposure and equipment connection method. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- crane, hoist, festoon and moving equipment routes requiring flat cable profile
- industrial machinery where space and bending direction need profile control
- portable or semi-mobile power connections with repeated movement
- projects comparing flat rubber cable against round flexible cable options
Construction
Flexible copper conductor with rubber insulation and rubber or neoprene sheath according to cable type. Conductor class, sheath compound, voltage grade, oil/weather resistance and bending requirements should be checked before production.
Marking on Cable
FARWALK CABLE – Flat Rubber Cable – [standard] – [voltage] – [core x size] – [year] – [meter mark]
Cable Identification
- Core color, sheath color and marking can be reviewed according to application and standard route.
- Flexible cable identification should match voltage grade, conductor size and cable type.
Standards
- IEC 60245
- EN 50525
- BS 6500 / BS 7919 where applicable
Main Features
Flexible Rubber Sheath
Rubber sheath supports repeated handling, abrasion and industrial operating environments.
Core Arrangement Review
For Flat Rubber Cable, core count, conductor size and suspension method should match the equipment and travel distance.
Product Selection Guide
Duty Level
Confirm whether the cable is light-duty, heavy-duty, welding, flat moving or portable industrial service.
Movement Requirement
Review bending, dragging, repeated handling, festoon movement or equipment travel before choosing construction.
Environment
Check oil, moisture, sunlight, abrasion, temperature and chemical exposure before selecting sheath material.
Size and Voltage
Match conductor size, voltage rating and core count to equipment load, route length and duty cycle.
Technical Data Overview
| No. of Cores x Cross Section (mm²) | Nominal Thickness (mm) | Nominal Width (mm) | Approx. Weight (kg/km) | Current Rating @ 30°C (Amps) | Min. Bending Radius (mm) |
| Multi-Core Flat Rubber – 450/750V Grade | Multi-Core Flat Rubber – 450/750V Grade | Multi-Core Flat Rubber – 450/750V Grade | Multi-Core Flat Rubber – 450/750V Grade | Multi-Core Flat Rubber – 450/750V Grade | Multi-Core Flat Rubber – 450/750V Grade |
| 4 G 1.5 | 6.2 | 18.5 | 235 | 18 | 60 |
| 8 G 1.5 | 6.2 | 34.5 | 455 | 18 | 60 |
| 12 G 1.5 | 6.2 | 48.5 | 650 | 18 | 60 |
| 4 G 2.5 | 7.5 | 22.5 | 365 | 26 | 75 |
| 8 G 2.5 | 7.5 | 41.5 | 685 | 26 | 75 |
| 12 G 2.5 | 7.5 | 59.5 | 990 | 26 | 75 |
| 4 G 4.0 | 9.2 | 26.5 | 545 | 34 | 95 |
| 4 G 6.0 | 10.5 | 30.5 | 780 | 44 | 110 |
| 4 G 10 | 12.5 | 36.5 | 1150 | 61 | 150 |
