Moisture-Resistant Building Wire
THW / THW-2 supports building wiring routes where thermoplastic insulation and wet-location review are required.

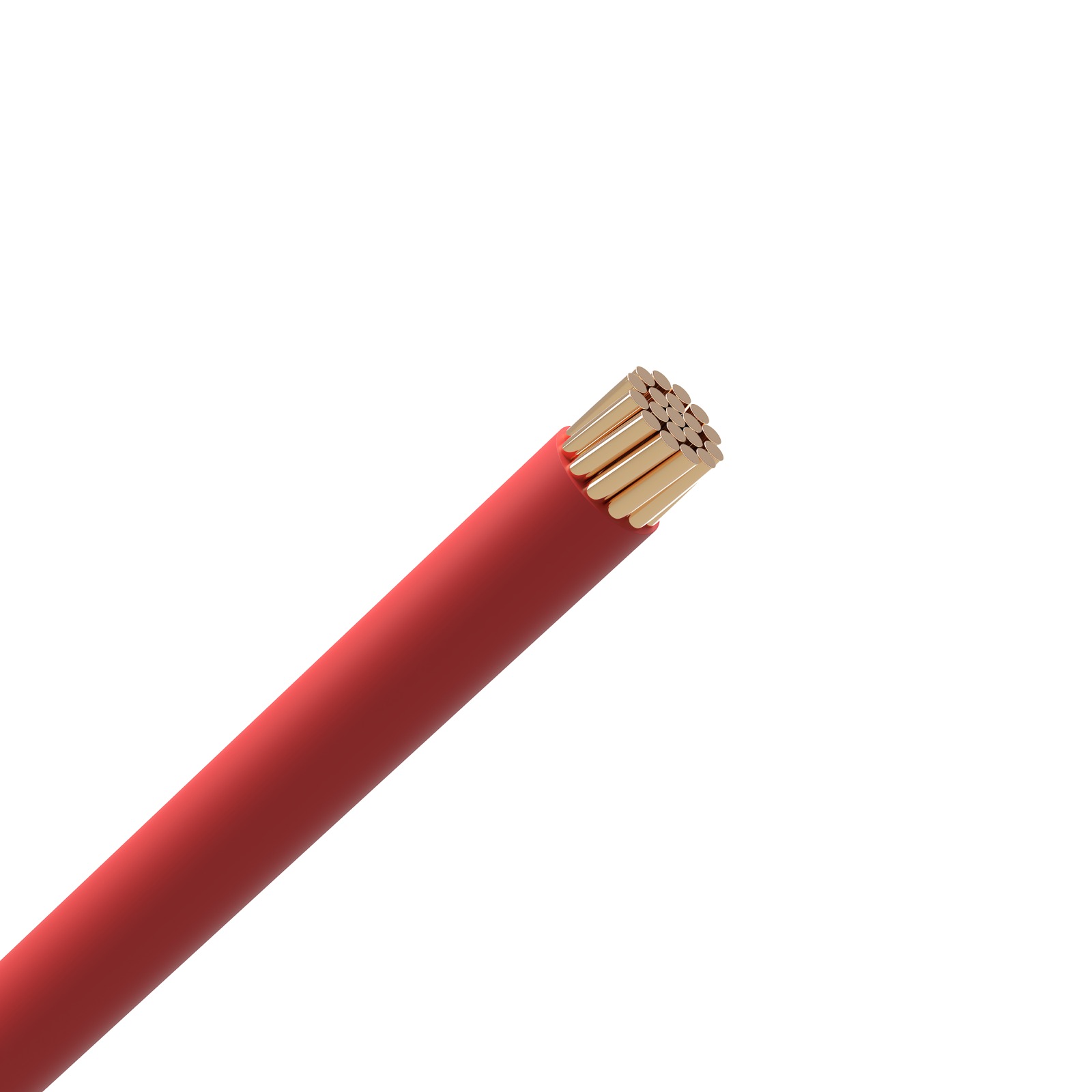

THW / THW-2 Wire
THW / THW-2 Wire for building wire and fixed electrical installation routes.
THW / THW-2 Wire is reviewed for building electrical systems where conductor material, insulation type, circuit route and local code requirement define selection.
Product Overview
THW / THW-2 Wire should be selected according to the actual project route, not by product name alone. Before quotation, review wire type, conductor material, temperature rating, wet/dry location rating and local electrical code route. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- building branch circuits and feeders
- commercial and residential electrical systems
- conduit, raceway or building wiring installations
- projects requiring conductor material and local code route confirmation
Construction
copper or aluminum conductor with insulation and jacket system according to building wire type. Final conductor size, temperature rating, wet/dry location rating and wire type, temperature rating and installation route should follow the selected code route.
Marking on Cable
FARWALK CABLE – THW / THW-2 Wire – [standard] – [size] – [rating] – [year] – [meter mark]
Cable Identification
- Insulation color, conductor identification and printed marking can be matched to the requested building wire type.
- Wire type, conductor size and temperature rating should remain clear in product marking when required.
Standards
- UL 83
- UL 44
- UL 854
- ASTM B800 / B801 where applicable
Main Features
Branch and Feeder Use
Suitable for conduit or raceway routes subject to project code and ampacity requirements.
Material and Size Options
For THW / THW-2 Wire, copper or aluminum conductor selection should be checked by load, voltage drop and local installation rules.
Product Selection Guide
Wire Type
Confirm THHN/THWN-2, XHHW-2, THW, TFFN/TFN, SER or SEU before selecting conductor and insulation.
Local Code Route
Building wire must follow the destination market electrical code and approved installation method.
Wet / Dry Location
Review insulation rating, jacket type and temperature class according to conduit, raceway or service entrance use.
Conductor Material
Choose copper, aluminum or 8000-series alloy according to ampacity, voltage drop, termination and budget.
Technical Data Overview
| Size (AWG / kcmil) | No. of Strands | Insulation Thick. (mils/mm) | Approx. Overall Dia. (mils/mm) | Approx. Weight (lb/kft) | Allowable Ampacity @ 90°C (Amps) |
| Stranded Copper THW / THW-2 – 600V | Stranded Copper THW / THW-2 – 600V | Stranded Copper THW / THW-2 – 600V | Stranded Copper THW / THW-2 – 600V | Stranded Copper THW / THW-2 – 600V | Stranded Copper THW / THW-2 – 600V |
| 14 AWG | 7 | 45 / 1.14 | 163 / 4.14 | 23 | 15 |
| 12 AWG | 7 | 45 / 1.14 | 182 / 4.62 | 32 | 20 |
| 10 AWG | 7 | 45 / 1.14 | 206 / 5.23 | 46 | 30 |
| 8 AWG | 7 | 60 / 1.52 | 266 / 6.76 | 77 | 55 |
| 6 AWG | 7 | 60 / 1.52 | 304 / 7.72 | 113 | 75 |
| 4 AWG | 7 | 60 / 1.52 | 352 / 8.94 | 169 | 95 |
| 2 AWG | 7 | 60 / 1.52 | 412 / 10.46 | 252 | 130 |
| 1/0 AWG | 19 | 80 / 2.03 | 526 / 13.36 | 405 | 170 |
| 2/0 AWG | 19 | 80 / 2.03 | 572 / 14.53 | 502 | 195 |
| 4/0 AWG | 19 | 80 / 2.03 | 686 / 17.42 | 778 | 260 |
| 500 kcmil | 37 | 95 / 2.41 | 991 / 25.17 | 1785 | 430 |
