Service Entrance Configuration
SER and SEU constructions should match conductor arrangement, grounding method and local service entrance rules.

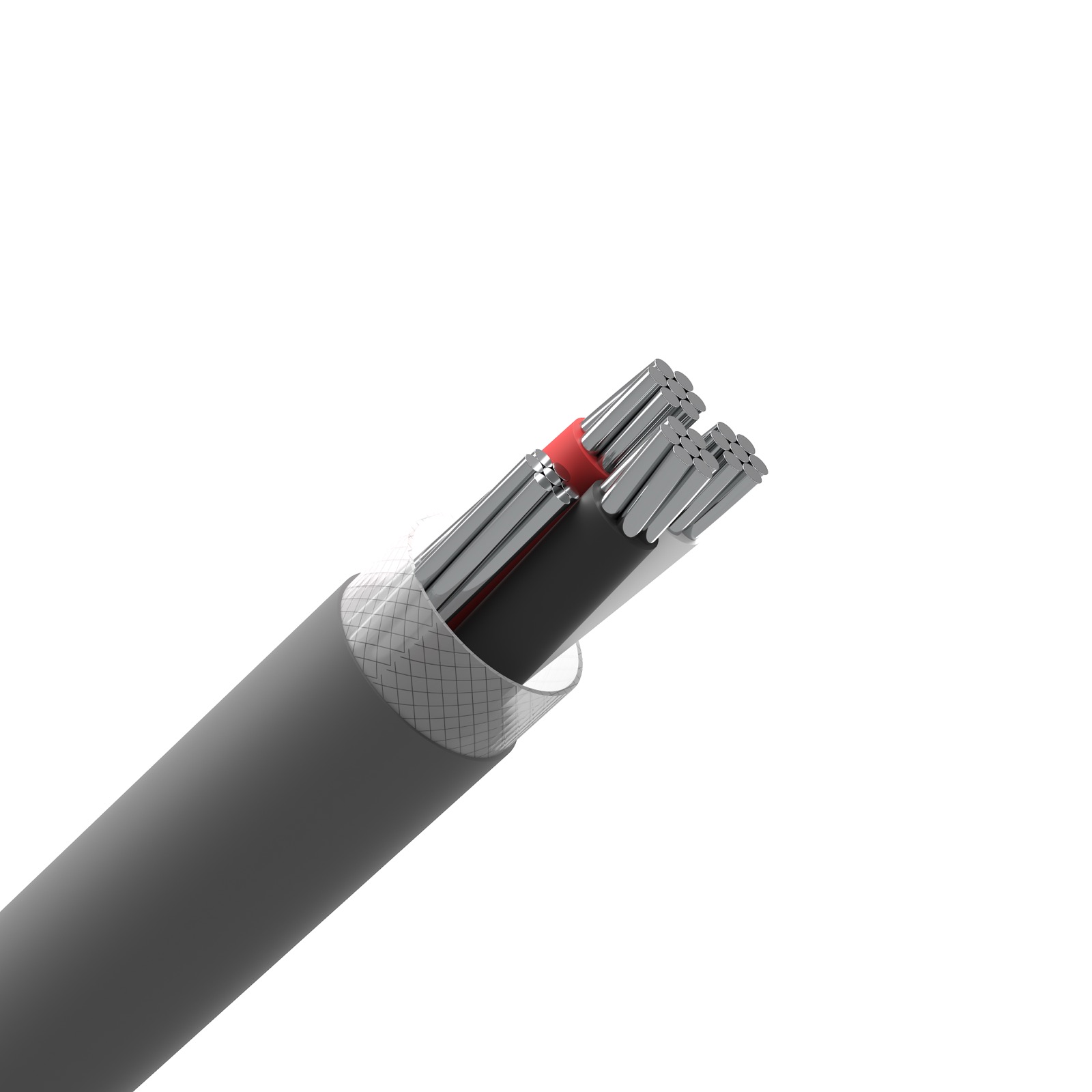

SER Service Entrance Cable
Service entrance cable for utility-to-building connections.
SER Service Entrance Cable supports service entrance cable routes where conductor arrangement, neutral/ground configuration and UL service cable requirements must be checked.
Product Overview
SER Service Entrance Cable should be selected according to the actual project route, not by product name alone. Before quotation, review wire type, conductor material, temperature rating, wet/dry location rating and local electrical code route. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- service entrance and utility-to-building connection routes
- panel feeder or sub-panel feeder applications where cable assembly is specified
- residential and light commercial service cable projects
- projects requiring neutral, grounding and conductor arrangement review
Construction
copper or aluminum conductor with insulation and jacket system according to building wire type. Final conductor size, temperature rating, wet/dry location rating and neutral, grounding and service entrance configuration should follow the selected code route.
Marking on Cable
FARWALK CABLE – SER Service Entrance Cable – [standard] – [size] – [rating] – [year] – [meter mark]
Cable Identification
- Insulation color, conductor identification and printed marking can be matched to the requested service cable type.
- Neutral, grounding and phase identification should follow the selected service entrance route and local code requirement.
Standards
- UL 83
- UL 44
- UL 854
- ASTM B800 / B801 where applicable
Main Features
Utility-to-Building Route
Used for service entrance, feeder and panel supply routes where approved building wire construction is required.
Code-Based Selection
For SER Service Entrance Cable, conductor material, insulation type, neutral configuration and ampacity should be checked against local code requirements.
Product Selection Guide
Wire Type
Confirm THHN/THWN-2, XHHW-2, THW, TFFN/TFN, SER or SEU before selecting conductor and insulation.
Local Code Route
Building wire must follow the destination market electrical code and approved installation method.
Wet / Dry Location
Review insulation rating, jacket type and temperature class according to conduit, raceway or service entrance use.
Conductor Material
Choose copper, aluminum or 8000-series alloy according to ampacity, voltage drop, termination and budget.
Technical Data Overview
| Size (AWG / kcmil) | No. of Conductors | Insulation Thick. (mils/mm) | Approx. Overall Dia. (mils/mm) | Approx. Weight (lb/kft) | Allowable Ampacity @ 90°C (Amps) |
| Aluminum Alloy AA-8000 SER – 600V | Aluminum Alloy AA-8000 SER – 600V | Aluminum Alloy AA-8000 SER – 600V | Aluminum Alloy AA-8000 SER – 600V | Aluminum Alloy AA-8000 SER – 600V | Aluminum Alloy AA-8000 SER – 600V |
| 8 AWG | 3C + Ground | 45 / 1.14 | 638 / 16.21 | 165 | 45 |
| 6 AWG | 3C + Ground | 45 / 1.14 | 735 / 18.67 | 235 | 60 |
| 4 AWG | 3C + Ground | 45 / 1.14 | 848 / 21.54 | 330 | 75 |
| 2 AWG | 3C + Ground | 45 / 1.14 | 1015 / 25.78 | 495 | 100 |
| 1 AWG | 3C + Ground | 55 / 1.40 | 1165 / 29.59 | 620 | 115 |
| 1/0 AWG | 3C + Ground | 55 / 1.40 | 1255 / 31.88 | 740 | 135 |
| 2/0 AWG | 3C + Ground | 55 / 1.40 | 1375 / 34.93 | 895 | 150 |
| 4/0 AWG | 3C + Ground | 55 / 1.40 | 1655 / 42.04 | 1325 | 205 |
| 250 kcmil | 3C + Ground | 65 / 1.65 | 1825 / 46.36 | 1550 | 230 |
