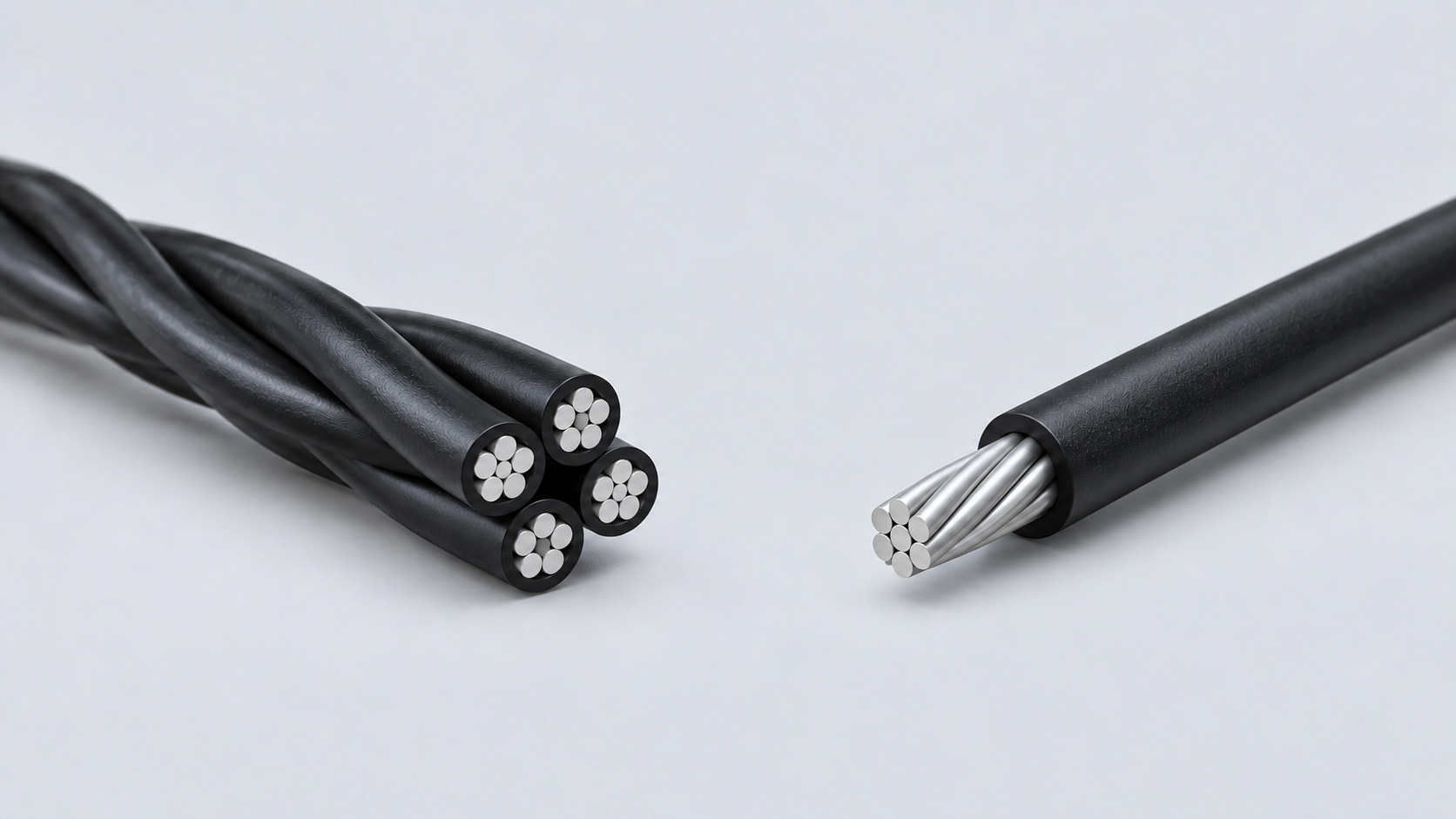

ABC cable describes an overhead cable bundle. Covered conductor describes a conductor with a protective covering. Tree wire is a name used for covered overhead conductors, especially in North American product literature.

The terms overlap, but they do not establish equivalent construction or performance. For a buyer reading a quotation, the useful question is what the proposed product actually contains and how it will be supported on the line.

ABC cable vs covered conductor at a glance

These are reading aids for specifications, not three universally separate product categories. The examples below show why a product name needs to be read alongside its drawing and technical data.

What ABC cable means

ABC commonly means aerial bundled cable. The related term aerial bunched cable appears in Indian documentation: the Bureau of Indian Standards uses that wording in its IS 14255 product manual. Both names point to an assembled aerial cable, while the applicable specification determines the construction.

Low-voltage ABC is a familiar example. Nexans Australia lists two-, three- and four-core LV ABC with insulated aluminium conductors and a 0.6/1 kV rating. That is one defined product family; it does not make every ABC a four-core cable or assign the same voltage rating to every bundle.

The neutral also needs attention. Eskom specification 240-84758170, Revision 2, for LV aerial bundled conductors covers both bare and insulated neutral supporting conductors. Describing the phase cores as insulated therefore does not tell you whether every conductor in the assembly is insulated.

ABC is also used at medium voltage. For example, Enel’s GSCC008 specification, Rev. 02 (November 2018) describes MV aerial cables bundled around a messenger, the member that supports the assembly. Its specified designs include insulation screens, metallic earth screens and outer sheaths. These features belong to that specification and should not be assumed for every product labelled ABC.

When a quotation says only “ABC cable,” ask for the voltage designation, core arrangement and a drawing showing how the bundle is mechanically supported.

What covered conductor means

A covered conductor has a layer, or multiple layers, of material around the conductor to provide protection under specified contact conditions. A covering made from insulating material does not, by itself, establish the same electrical duty as an insulated cable.

The BSI overview of BS EN 50397-1:2020 makes the distinction explicit. For the overhead conductors within its scope, the covering provides protection during accidental contact and can withstand phase-to-earth voltage temporarily. BSI also states that these unscreened covered conductors are not touch-proof and must be treated as bare conductors with respect to electric shock.

That standard addresses covered conductors for rated voltages above 1 kV AC and up to 36 kV AC. This is the scope of a particular standard, not a universal voltage definition for every product sold as covered conductor.

For procurement, read “covered” as a prompt to check the covering’s function, construction and test requirements. A material name such as XLPE, or a voltage printed in the product heading, cannot answer those questions on its own.

What tree wire means

Tree wire generally refers to a covered overhead conductor intended for locations where vegetation contact is a concern. It is useful product terminology, but it does not identify one fixed layer structure.

Prysmian’s US tree wire and spacer cable datasheet includes single-, two- and three-layer constructions. The three-layer design includes a semiconductive conductor shield. Consequently, “tree wire” should not automatically be translated as a conductor with one thin plastic layer. A semiconductive conductor shield is also a different component from the metallic earth screen described in the Enel MV ABC example.

The name does not mean vegetation management can stop. Southwire’s Tree Wire Installation and Use Guide explains that its covering is intended to address incidental contact, not prolonged contact, and that tree trimming remains necessary. It also warns against relying on the covering for personal protection.

None of these product names is permission to touch an energized line. “Insulated” in an ABC specification should not be interpreted that way either.

Where spacer cable fits

Spacer cable adds a question about the line arrangement. In the system described by Southwire’s SPEC 84017, covered phase conductors are installed with a supporting messenger and devices that maintain their spacing. Those spacers hold the conductors in a compact configuration.

The same Southwire product is described as suitable for tree wire or spacer cable use. Prysmian likewise states that its listed tree wire designs may be used as spacer cable with appropriate accessories. This explains why the names can appear together on a datasheet.

However, a reel of covered conductor does not supply the messenger, spacers and other fittings needed for a complete spacer cable system. Ask whether the offer covers the conductor alone or the specified system components. Confirm that the proposed conductor and accessories are suitable for the same installation.

How to clarify an ambiguous quotation

Keep the original product name, then ask the supplier to identify four things:

1. Electrical duty:the system voltage, the product’s full voltage designation and the governing utility or project specification, including its revision.
2. Construction:the conductor material and size, core count, covering or insulation layers, and any screens or sheaths. For a bundle, identify the neutral arrangement and explain which conductor or component carries the mechanical load.
3. Line arrangement:whether the offer is for a bundled cable, individual covered conductors on insulators, or conductors intended for a messenger-supported spacer system.
4. Evidence and supply scope:a construction drawing, matching datasheet, relevant test documentation and a clear list of included accessories.

For example, “ABC, aluminium, XLPE” leaves the voltage, core arrangement and support design unresolved. “Tree wire, three-layer” identifies more of the covering structure, but still leaves the intended line configuration and applicable requirements open. These descriptions are starting points for clarification, not complete specifications.

Use the name to find the product family; use the specification and drawing to compare offers. If you are preparing an enquiry to Farwalk Cable, include the original utility description and available drawings so that any terminology differences can be identified before products are compared.
