An AAC vs AAAC vs ACSR vs ACAR comparison starts with the materials: AAC uses electrical-grade aluminum, AAAC uses aluminum-alloy wires, ACSR adds steel reinforcement, and ACAR combines aluminum with aluminum-alloy reinforcing wires.

For a buyer, the next question is what the proposed conductor must achieve on the line. Resistance, current rating, strength, sag, corrosion protection and compatible fittings all matter. Matching the abbreviation and nominal size alone does not establish an equivalent replacement.

This guide covers conventional bare overhead conductors. Insulated aerial bundled cable, covered conductors and specialized high-temperature designs need separate specifications.

In this article

• What the four conductor types mean
• Why the same size can give different performance
• How to compare supplier data
• Standards and quotation requirements

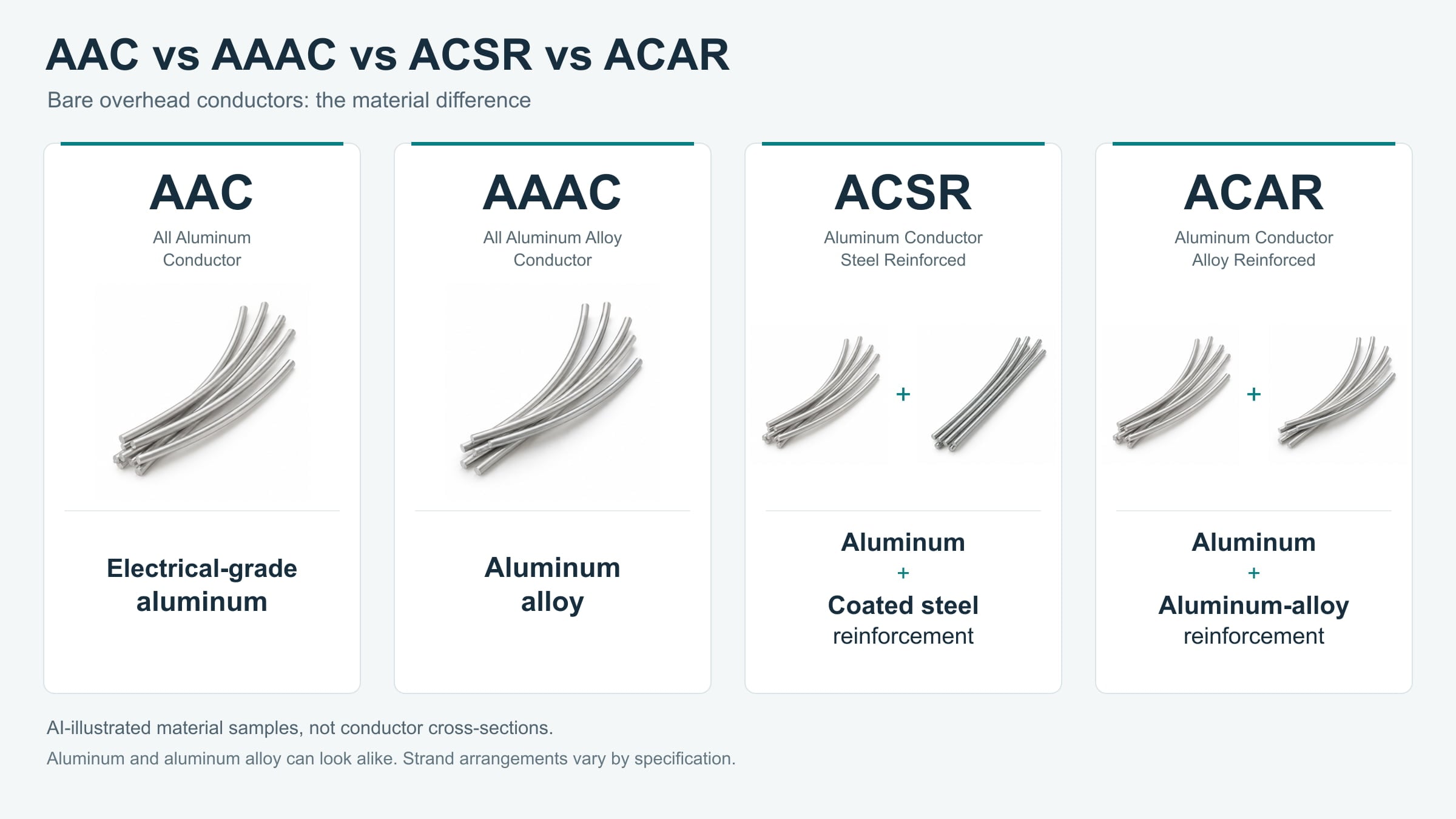

AAC vs AAAC vs ACSR vs ACAR: what changes?

AAC: electrical-grade aluminum throughout

AAC means All Aluminum Conductor. A conventional overhead example uses stranded 1350-H19 aluminum wires, without a separate reinforcing core. Electrical-grade aluminum is a defined material grade; describing it as “100% pure aluminum” is misleading.

AAC is worth considering where the line’s mechanical requirements can be met without alloy or steel reinforcement. Southwire’s AAC specification identifies overhead applications where conductor strength is not a critical factor. That is a starting point for selection, not a universal span limit. Check the proposed size against the project’s strength and clearance requirements.

AAAC: aluminum alloy throughout

AAAC means All Aluminum Alloy Conductor. Its wires are aluminum alloy, with no steel core. The alloy and temper must be named: the letters AAAC do not define one material worldwide.

For example, ASTM B399/B399M covers 6201-T81 and 6201-T83 conductors, while Nexans Australia lists AAAC/1120 manufactured to AS 1531. These references describe different material specifications, not automatically interchangeable products.

AAAC provides a steel-free option in which the selected alloy supplies the required electrical and mechanical properties. Ask for the actual rated strength, resistance and mass of the offered construction. Do not assume that two AAAC offers with the same nominal area use the same alloy or provide the same performance.

ACSR: aluminum with steel reinforcement

ACSR means Aluminum Conductor, Steel Reinforced. Conventional ACSR combines aluminum wires with a steel core. The steel grade, coating and aluminum-to-steel configuration are part of the product specification.

Steel reinforcement gives designers another way to meet mechanical requirements, but the acronym does not establish the strength of a particular construction. Request the strand schedule, aluminum and steel areas, overall diameter, mass and rated strength.

Protection also varies. Southwire’s ACSR information describes coated steel options and additional grease protection. Specify the required core protection and grease coverage where applicable; a generic “ACSR” line on a quotation leaves those choices unresolved.

ACAR: aluminum reinforced with aluminum alloy

ACAR means Aluminum Conductor, Aluminum Alloy Reinforced. It combines electrical-grade aluminum and aluminum-alloy wires without a steel core. Unlike AAAC, it uses a mix of the two material types.

In conventional 1350/6201 ACAR, changing the proportion of alloy wires changes the electrical and mechanical result. The alloy commonly occupies the core, but some constructions distribute it through other layers. Ask for the material arrangement in the drawing rather than assuming every ACAR has the same central-core layout.

The same nominal size can hide a different conductor

Two entries in Southwire’s ACAR specification, Tables 1 and 2, illustrate the issue. Both are listed at 739.8 kcmil and 0.990 inches in diameter, but their wire mixtures differ. In the table below, 30/7 means 30 electrical-grade aluminum wires and 7 alloy wires; 18/19 uses 18 and 19 respectively.

The higher-strength entry also has higher DC resistance. Neither is a universal winner: the preferred construction depends on the required performance. These are one manufacturer’s published catalog examples, using its original units, not Farwalk test results or a proposed line design.

Compare the requirement before comparing the price

Set a common electrical basis

Ask whether the quoted cross-sectional area means aluminum area, alloy area or total metallic area including steel. Require the areas to be identified separately where more than one material is present. Equal total area, equal diameter and equal resistance are different comparison bases.

Compare conductor resistance at the same reference temperature and distinguish DC from AC values. If the purpose is to evaluate operating losses, use the applicable operating-temperature AC resistance and the project’s loading assumptions, rather than treating a wire-material conductivity percentage as a complete conductor result.

Current ratings also need common conditions. The Nexans AAAC/1120 data linked above gives different ratings for weather, wind and surface conditions. Ask suppliers to state conductor and ambient temperatures, wind, solar exposure and surface assumptions. A higher catalog ampacity under different assumptions is not evidence of a better conductor for your route.

Check strength together with sag and clearance

Rated breaking strength is one input to line design. It does not, by itself, establish allowable installation tension, final sag or ground clearance.

For an alternative conductor, request sag-tension data appropriate to the project, including span, loading, temperature, tension and creep assumptions. Southwire’s SAG10 engineering manual describes calculations that distinguish initial and final conductor behavior. A claim such as “AAAC always sags less than ACSR” omits the conditions needed to evaluate it.

The project designer should review the proposed construction against the actual line. An alternative that meets the required resistance may still change structure loading, clearances or installation requirements.

Match protection and fittings to the route

For coastal or industrial routes, compare the specified materials and protection rather than choosing from a simple corrosion-resistance ranking. Prysmian identifies AAAC as an option where coastal exposure creates concern about ACSR steel components. Steel-free construction removes that steel-core concern; it does not make aluminum conductors immune to corrosion.

For ACSR, review the steel coating and any required grease protection. For every type, confirm the suitability of joints, clamps and terminations for the material, diameter and construction offered. The same outer diameter alone does not establish that an existing fitting is approved for the replacement.

Compare complete offers on the same commercial basis

There is no fixed purchase-price order that applies to every AAC, AAAC, ACSR and ACAR enquiry. Size, material specification, quantity, packing and delivery terms must be aligned before prices can be compared.

Request a common price unit, continuous drum lengths, total quantity, delivery basis and clear inclusions for fittings, tests and inspection. If alternatives change losses, hardware or installation work, keep those differences visible in the project evaluation instead of comparing conductor unit price alone.

Name the standard and the exact construction

The following ASTM references illustrate common conventional constructions. Their public scopes are useful for identifying the product family; they are not a declaration that every project must use ASTM:

• AAC: ASTM B231/B231M-23 covers concentric-lay-stranded aluminum 1350 conductors.
• AAAC: ASTM B399/B399M-23 covers concentric-lay-stranded 6201-T81 and 6201-T83 conductors.
• ACSR: ASTM B232/B232M-24 covers concentric-lay-stranded aluminum conductors reinforced with coated steel.
• ACAR: ASTM B524/B524M-23 covers 1350/6201 aluminum-alloy-reinforced conductors.

Use the standard, edition, conductor designation and utility specification required by the project. A different standard or a newer edition should be identified as a proposed deviation and reviewed, not silently substituted. Ask for evidence that matches the offered construction; Farwalk’s Standards & Quality page provides general document information, while product-specific requirements belong in the enquiry.

What to send when requesting an alternative

Turn the AAC vs AAAC vs ACSR vs ACAR comparison into a specific request. Send the approved conductor schedule or drawing, identify the requirement driving the comparison, and ask each supplier to return:

• The exact type, material grades, strand numbers and wire diameters, with areas by material.
• Overall diameter, mass per unit length, rated strength and resistance at stated temperatures.
• The current-rating basis and relevant sag-tension data if the supplier is proposing a design alternative.
• Protection, compatible fittings, compliance evidence and declared deviations.
• A quotation with the same quantity, drum lengths, delivery terms and document scope.

A useful supplier response explains how the offered construction meets the requested basis and what changes remain for project approval. To discuss a bare-conductor enquiry with Farwalk Cable, send the conductor specification and comparison requirements.
