XLPE Insulated Control Cable
XLPE insulation supports improved thermal and electrical performance for control and auxiliary circuits.
XLPE Insulated Control Cable
XLPE Insulated Control Cable for control, signal and instrumentation circuits.
XLPE Insulated Control Cable is used for fixed control and auxiliary circuits where core count, conductor size, insulation material and standard route define the cable selection.
Product Overview
XLPE Insulated Control Cable should be selected according to the actual project route, not by product name alone. Before quotation, review core count, conductor size, insulation material, screen or armour requirement and control-system route. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- industrial control panels and auxiliary circuits
- substation and power plant control wiring
- automation, monitoring and signal routes
- instrumentation circuits where screening or pair identification may be required
Construction

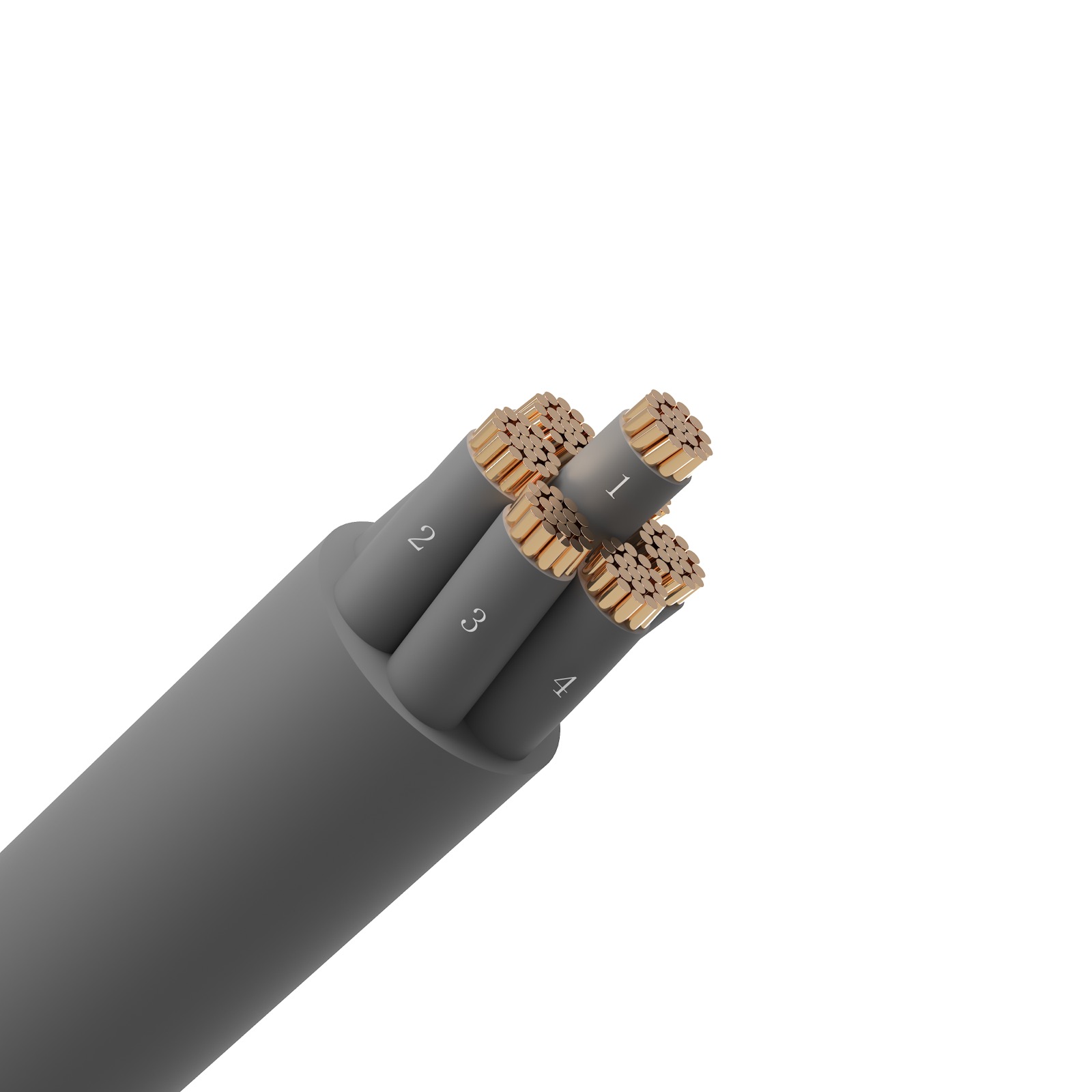

Annealed copper conductor with XLPE insulation, optional overall screen, pair screen, armour and sheath according to route requirements. Core numbering, pair identification and flame/LSZH properties should follow the selected standard.
Marking on Cable
FARWALK CABLE – XLPE Insulated Control Cable – [standard] – [voltage] – [core/pair x size] – [year] – [meter mark]
Cable Identification
- Core identification can use number marking or color coding according to project requirement.
- Pairs, triads or screened units should be identified clearly for instrumentation circuits.
Standards
- IEC 60502-1
- GB/T 9330
- BS EN 50288-7 where applicable
Main Features
Core and Identification Options
Multicore design, numbering and color coding can be reviewed according to panel wiring requirements.
Armour / Screen Choice
For XLPE Insulated Control Cable, armour and screen options should be selected according to mechanical risk and signal interference conditions.
Product Selection Guide
Circuit Function
Confirm whether the cable is for control, auxiliary, instrumentation, signal or panel wiring before selecting structure.
Core / Pair Requirement
Define core count, pair or triad arrangement, conductor size and identification method from the wiring diagram.
Screen and Armour
Use screened or armoured versions when electromagnetic interference or mechanical protection is required.
Sheath Performance
Select PVC, XLPE, LSZH or flame-retardant construction according to environment and fire-safety requirements.
Technical Data Overview
| No. of Cores x Cross Section (mm²) | Nominal Conductor Dia. (mm) | Nominal Insulation Thick. (mm) | Nominal Sheath Thick. (mm) | Approx. Overall Dia. (mm) | Max. DC Resistance @ 20°C (Ω/km) |
| 450/750V & 0.6/1kV XLPE Control Cable (Stranded Copper) | 450/750V & 0.6/1kV XLPE Control Cable (Stranded Copper) | 450/750V & 0.6/1kV XLPE Control Cable (Stranded Copper) | 450/750V & 0.6/1kV XLPE Control Cable (Stranded Copper) | 450/750V & 0.6/1kV XLPE Control Cable (Stranded Copper) | 450/750V & 0.6/1kV XLPE Control Cable (Stranded Copper) |
| 2 x 1.5 | 1.56 | 0.7 | 1.2 | 8.5 | 12.1 |
| 3 x 1.5 | 1.56 | 0.7 | 1.2 | 9.0 | 12.1 |
| 4 x 1.5 | 1.56 | 0.7 | 1.2 | 9.8 | 12.1 |
| 5 x 1.5 | 1.56 | 0.7 | 1.2 | 10.6 | 12.1 |
| 7 x 1.5 | 1.56 | 0.7 | 1.2 | 11.5 | 12.1 |
| 2 x 2.5 | 2.01 | 0.7 | 1.2 | 9.6 | 7.41 |
| 3 x 2.5 | 2.01 | 0.7 | 1.2 | 10.1 | 7.41 |
| 4 x 2.5 | 2.01 | 0.7 | 1.2 | 11.0 | 7.41 |
| 5 x 2.5 | 2.01 | 0.7 | 1.2 | 12.0 | 7.41 |
| 7 x 2.5 | 2.01 | 0.7 | 1.2 | 13.0 | 7.41 |
