Mine Power Feeder Route
MP-GC cable supports feeder applications where grounding and ground-check functions are required.
MP-GC Mine Power Feeder Cable
Mine power feeder cable with ground-check route support.
MP-GC Mine Power Feeder Cable is reviewed for mine power feeder routes where three-conductor feeder construction, grounding and project voltage class must be confirmed.
Product Overview
MP-GC Mine Power Feeder Cable should be selected according to the actual project route, not by product name alone. Before quotation, review equipment duty, voltage class, grounding or ground-check requirement, shielding, flexibility and abrasion exposure. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- surface and underground mining power routes
- portable mining equipment and trailing cable use
- mine feeder and heavy-duty industrial power supply
- abrasion, movement and mechanical-stress cable environments
Construction

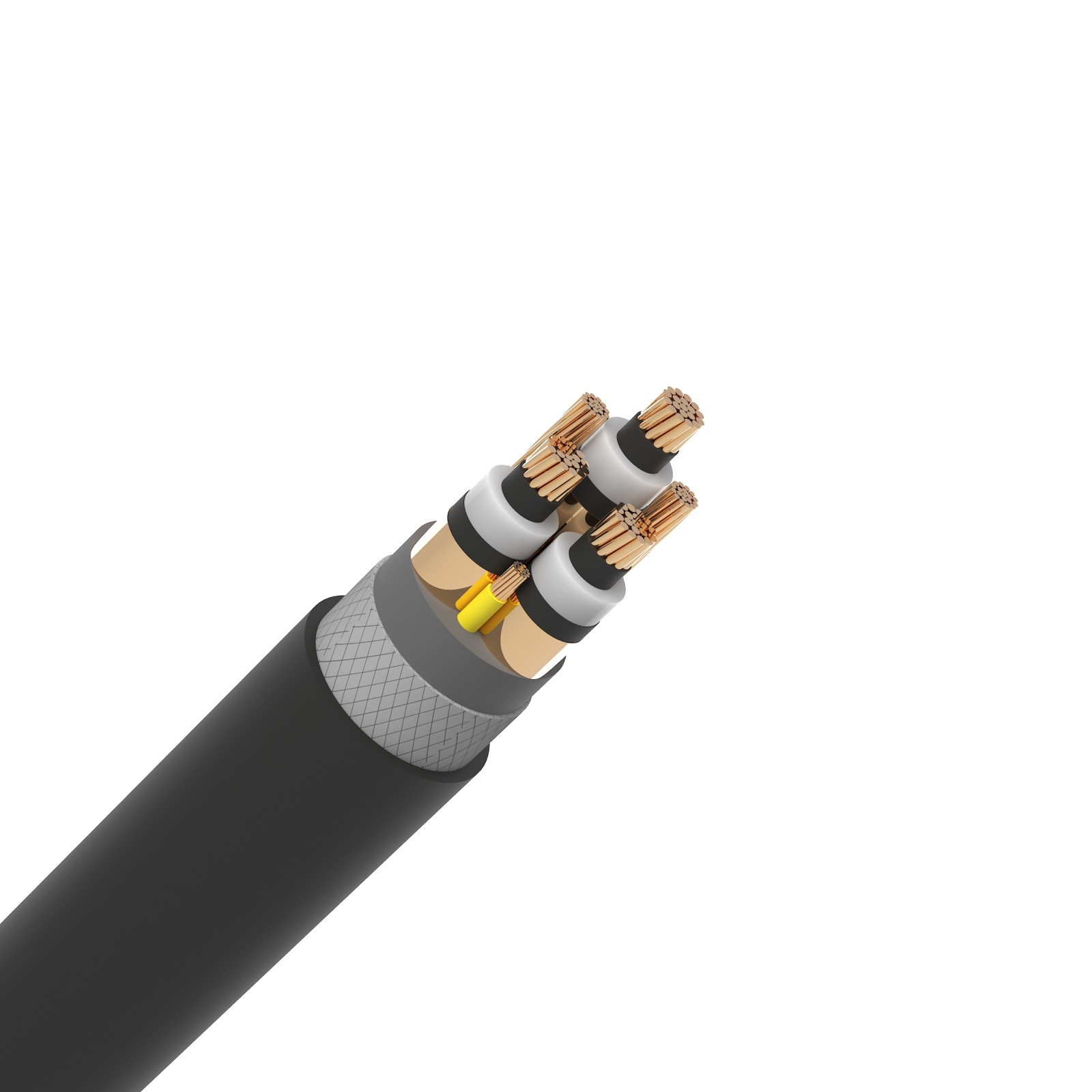

Flexible copper conductor construction with rubber insulation, ground conductor or ground-check conductor where required, shielding for SHD routes and heavy-duty rubber sheath. Voltage class, conductor size, shield/ground design and mine standard should be confirmed before supply.
Marking on Cable
FARWALK CABLE – MP-GC Mine Power Feeder Cable – [standard] – [voltage] – [core x size] – [year] – [meter mark]
Cable Identification
- Phase, ground and ground-check conductors should be clearly identified according to mining cable type.
- Sheath marking should show voltage class, cable type and conductor size when required.
Standards
- ICEA S-75-381
- NEMA WC 58
- UL 1650
- CSA C22.2 No.96 where specified
Main Features
Heavy-Duty Construction
Designed for mining power distribution routes with abrasion, dragging and mechanical stress considerations.
Voltage-Specific Selection
For MP-GC Mine Power Feeder Cable, 2kV to 35kV class, conductor size, shield design and jacket requirements should be confirmed by mine standard.
Product Selection Guide
Mining Cable Type
Separate Type W, G-GC, MP-GC, SHD, SHD-GC, SHD-PCG and SHD-CGC before selecting construction.
Voltage Class
Confirm 2kV, 5kV, 8kV, 15kV, 25kV or higher project voltage before reviewing insulation and shield design.
Grounding / Monitoring
Select grounding, ground-check, pilot or shielded construction according to mine safety requirements.
Mechanical Duty
Check dragging, abrasion, bending radius, reeling, temperature and chemical exposure before selecting jacket material.
Technical Data Overview
| Size (AWG / kcmil) | Approx. OD (mm) | Approx. Weight (kg/km) | Current Rating @ 90°C (Amps) | Min. Bending Radius (mm) | Max. Cond. Resistance (Ω/km) |
| 3-Core MP-GC – 15000 Volts (High Voltage Feeder) | 3-Core MP-GC – 15000 Volts (High Voltage Feeder) | 3-Core MP-GC – 15000 Volts (High Voltage Feeder) | 3-Core MP-GC – 15000 Volts (High Voltage Feeder) | 3-Core MP-GC – 15000 Volts (High Voltage Feeder) | 3-Core MP-GC – 15000 Volts (High Voltage Feeder) |
| 2 AWG | 52.8 | 4150 | 135 | 635 | 0.54 |
| 1 AWG | 55.5 | 4650 | 155 | 665 | 0.43 |
| 1/0 AWG | 59.2 | 5480 | 180 | 710 | 0.34 |
| 2/0 AWG | 63.5 | 6450 | 205 | 765 | 0.27 |
| 4/0 AWG | 71.2 | 8850 | 275 | 855 | 0.17 |
| 350 kcmil | 82.5 | 12450 | 365 | 990 | 0.10 |
| 500 kcmil | 92.8 | 16550 | 445 | 1115 | 0.07 |
