Tinned Copper Conductor
Tinned copper improves oxidation resistance and supports reliable PV termination in outdoor environments.
Tinned Copper Solar Cable
Tinned copper solar cable for outdoor photovoltaic routes.
Tinned Copper Solar Cable is selected for PV array, combiner and solar power routes where conductor material, voltage rating, UV exposure and installation method define the final cable.
Product Overview
Tinned Copper Solar Cable should be selected according to the actual project route, not by product name alone. Before quotation, review DC/AC route, voltage rating, UV exposure, temperature range, insulation/sheath system and project standard. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- PV module string and array wiring
- combiner box and inverter DC connections
- solar farm and rooftop PV cable routes
- outdoor UV-exposed photovoltaic power projects
Construction

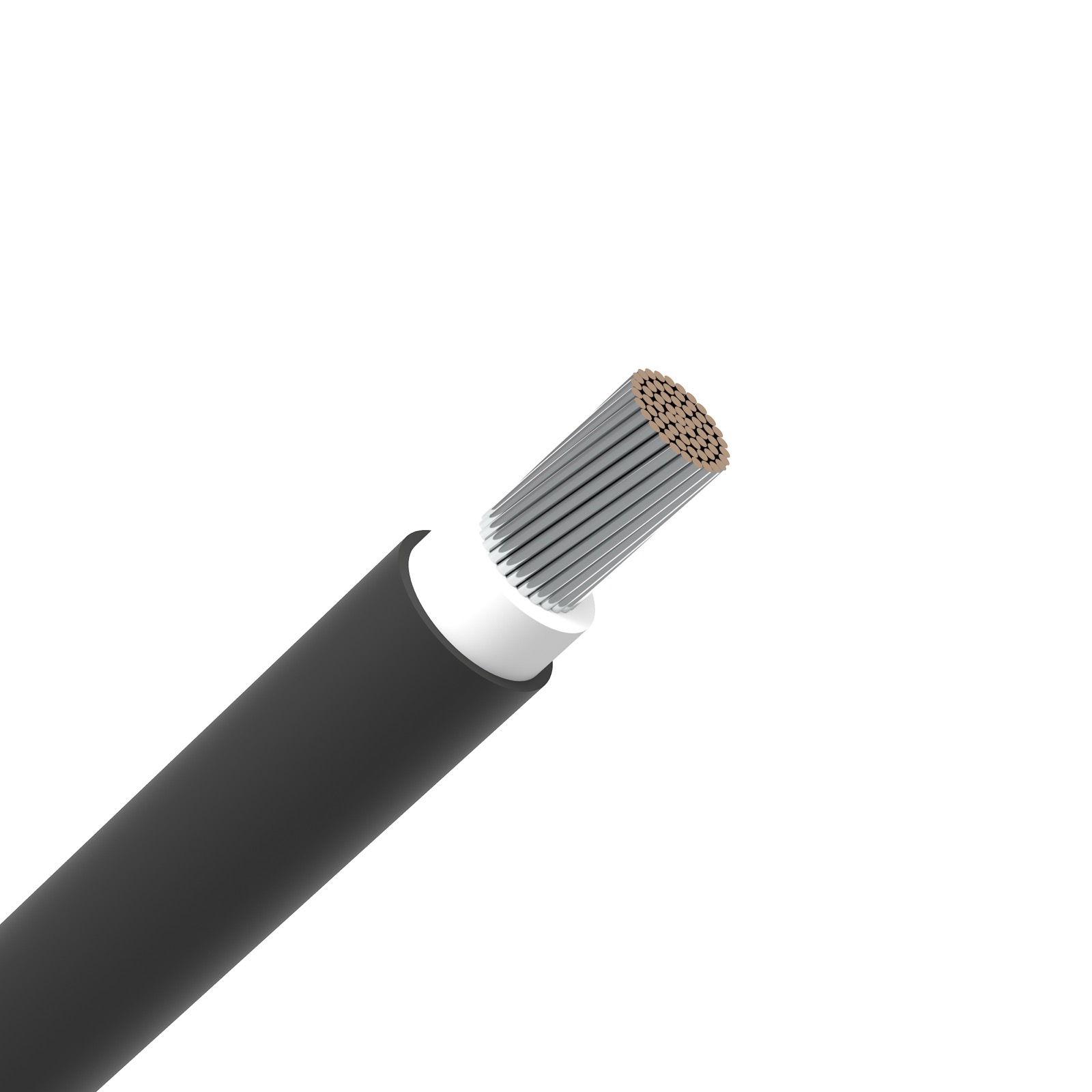

tinned copper conductor with PV insulation and sheath system for outdoor solar use. Voltage rating, UV/weather resistance, flame performance and direct-burial suitability should be reviewed according to standard and installation method.
Marking on Cable
FARWALK CABLE – Tinned Copper Solar Cable – [standard] – [DC voltage] – [size] – [year] – [meter mark]
Cable Identification
- Polarity identification, sheath color and printed marking can be reviewed according to PV project requirements.
- Voltage rating and standard route should be visible in cable marking when required.
Standards
- EN 50618
- IEC 62930
- UL 4703
- 2 PfG 1169 where specified
Main Features
Flexible Solar Installation
Fine-stranded construction helps routing in PV arrays, combiner boxes and inverter connections.
Standard-Based Supply
For Tinned Copper Solar Cable, voltage rating, insulation and sheath performance should follow EN, IEC, UL or project requirements.
Product Selection Guide
Market Standard
Confirm EN 50618, IEC 62930, UL 4703, 2 PfG or local PV requirement according to destination market.
DC Voltage Rating
Separate 1000V, 1500V and 2000V DC requirements before selecting insulation and sheath construction.
Conductor Choice
Choose tinned copper, copper or aluminum after checking ampacity, voltage drop, connector and termination compatibility.
Installation Route
Review rooftop, ground-mounted, direct burial, conduit or tracker route conditions before quotation.
Technical Data Overview
| Sectional Area (mm²) | Cond. Construction (n/mm) | Approx. Overall Dia. (mm) | Approx. Weight (kg/km) | Current Rating @ 60°C (Amps) | Max. DC Resistance @ 20°C (Ω/km) |
| H1Z2Z2-K Tinned Copper Solar Cable – 1500V DC | H1Z2Z2-K Tinned Copper Solar Cable – 1500V DC | H1Z2Z2-K Tinned Copper Solar Cable – 1500V DC | H1Z2Z2-K Tinned Copper Solar Cable – 1500V DC | H1Z2Z2-K Tinned Copper Solar Cable – 1500V DC | H1Z2Z2-K Tinned Copper Solar Cable – 1500V DC |
| 2.5 | 50 / 0.25 | 5.0 | 45 | 41 | 8.21 |
| 4.0 | 56 / 0.30 | 5.6 | 65 | 55 | 5.09 |
| 6.0 | 84 / 0.30 | 6.2 | 85 | 70 | 3.39 |
| 10.0 | 80 / 0.40 | 7.6 | 135 | 98 | 1.95 |
| 16.0 | 126 / 0.40 | 9.0 | 205 | 132 | 1.24 |
| 25.0 | 196 / 0.40 | 11.2 | 310 | 176 | 0.79 |
| 35.0 | 276 / 0.40 | 13.0 | 415 | 218 | 0.56 |
