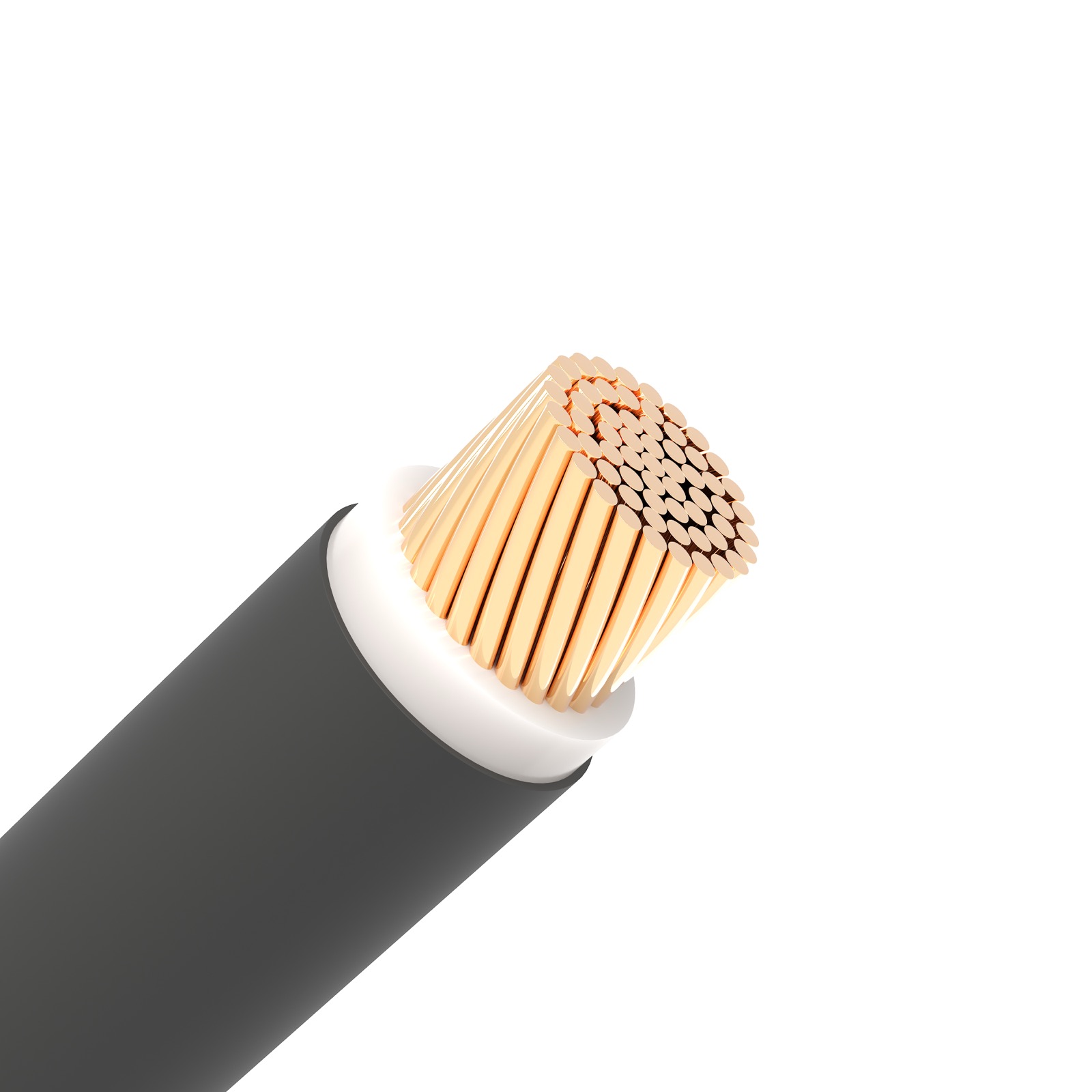

Single Core Power Cable
Single Core Power Cable for power power distribution and project cable selection.
Single Core Power Cable is used for fixed power distribution routes where voltage grade, conductor material, insulation, sheath and installation conditions determine the final cable construction.
Product Overview
Single Core Power Cable should be selected according to the actual project route, not by product name alone. Before quotation, review voltage class, conductor material, insulation system, armour or screen design, sheath route and installation condition. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- single-core feeder circuits and high-current LV/MV routes
- parallel cable runs where installation spacing and bonding method must be reviewed
- substation, renewable energy and industrial power distribution routes
- projects requiring conductor material and sheath route confirmation before selection
Construction
Copper or aluminum conductor as specified; XLPE or PVC insulation according to voltage grade; optional armour and sheath according to installation condition. Final dimensions, electrical values and test requirements should follow the selected standard and project datasheet.
Marking on Cable
FARWALK CABLE – Single Core Power Cable – [standard] – [voltage] – [core x size] – [year] – [meter mark]
Cable Identification
- Core identification can follow color or number marking according to standard and project requirement.
- Outer sheath color, voltage marking and meter marking can be reviewed before production.
Standards
- IEC 60502-1 / IEC 60502-2
- GB/T 12706
- BS / VDE / NFC routes where specified
Main Features
Armour Compatibility
AWA or non-magnetic armour may be considered for AC single-core routes where armour is required.
System-Level Selection
For Single Core Power Cable, current rating, short-circuit rating, installation grouping and sheath bonding should be checked together.
Product Selection Guide
Voltage Class
Start with the rated voltage; LV, MV, HV and EHV cables use different standards, tests and construction logic.
Installation Route
Confirm tray, duct, direct burial, tunnel, outdoor, indoor or underwater-related conditions before selecting armour and sheath.
Conductor / Core Choice
Review copper or aluminum, single-core or multicore construction by current rating, voltage drop and installation layout.
Fire / Mechanical Requirement
Select LSZH, fire-resistant, armoured, water-blocking or special sheath options only when the route requires them.
Technical Data Overview
| Area (mm²) | Insulation Thick. (mm) | Outer Sheath (mm) | Approx OD (mm) | Weight (kg/km) |
| 1 Core – Cu/XLPE/PVC Unarmoured (0.6/1kV) | 1 Core – Cu/XLPE/PVC Unarmoured (0.6/1kV) | 1 Core – Cu/XLPE/PVC Unarmoured (0.6/1kV) | 1 Core – Cu/XLPE/PVC Unarmoured (0.6/1kV) | 1 Core – Cu/XLPE/PVC Unarmoured (0.6/1kV) |
| 1.5 | 0.7 | 1.4 | 5.8 | 45 |
| 2.5 | 0.7 | 1.4 | 6.2 | 55 |
| 4 | 0.7 | 1.4 | 6.7 | 75 |
| 6 | 0.7 | 1.4 | 7.3 | 100 |
| 10 | 0.7 | 1.4 | 8.2 | 145 |
| 16 | 0.7 | 1.4 | 9.2 | 205 |
| 25 | 0.9 | 1.4 | 11.0 | 310 |
| 35 | 0.9 | 1.4 | 12.2 | 410 |
| 50 | 1.0 | 1.4 | 13.8 | 540 |
| 70 | 1.1 | 1.4 | 15.8 | 760 |
| 95 | 1.1 | 1.5 | 18.2 | 1040 |
| 120 | 1.2 | 1.5 | 19.8 | 1290 |
| 150 | 1.4 | 1.6 | 22.0 | 1600 |
| 185 | 1.6 | 1.6 | 24.5 | 1980 |
| 240 | 1.7 | 1.7 | 27.8 | 2550 |
| 300 | 1.8 | 1.8 | 30.8 | 3200 |
| 400 | 2.0 | 1.9 | 34.5 | 4150 |
| 500 | 2.2 | 2.0 | 38.2 | 5250 |
| 630 | 2.4 | 2.2 | 43.5 | 6750 |
| 800 | 2.6 | 2.4 | 48.8 | 8650 |
| 1000 | 2.8 | 2.6 | 54.2 | 10850 |
