Shielded Mining Cable
SHD-style construction is reviewed where shielding, grounding and medium-voltage mine power safety are required.
SHD Mining Cable
SHD Mining Cable for mining, portable power and heavy-duty industrial routes.
SHD Mining Cable is used for mining and heavy-duty power routes where abrasion, flexibility, grounding, shielding and voltage class affect cable selection.
Product Overview
SHD Mining Cable should be selected according to the actual project route, not by product name alone. Before quotation, review equipment duty, voltage class, grounding or ground-check requirement, shielding, flexibility and abrasion exposure. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- surface and underground mining power routes
- portable mining equipment and trailing cable use
- mine feeder and heavy-duty industrial power supply
- abrasion, movement and mechanical-stress cable environments
Construction

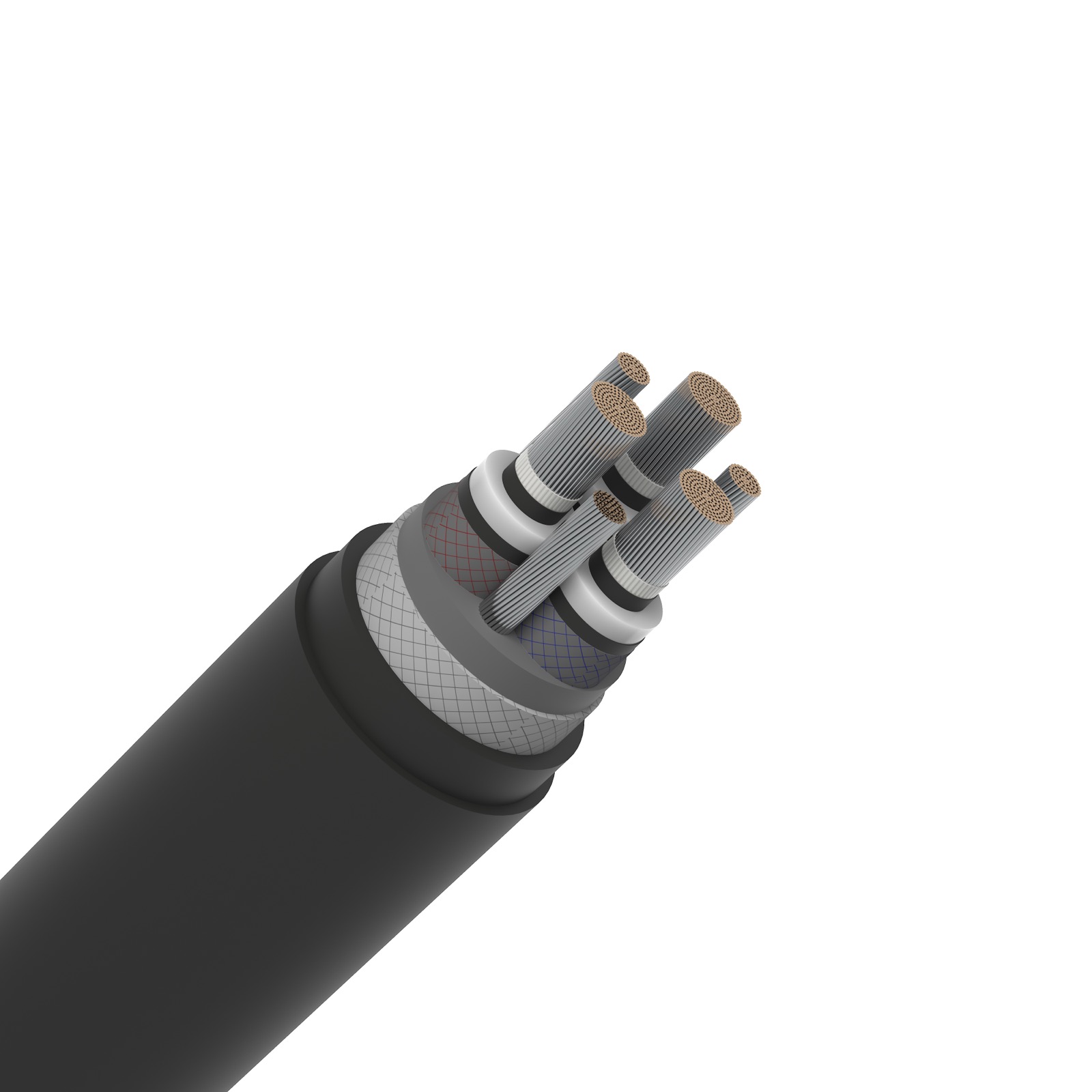

Flexible copper conductor construction with rubber insulation, ground conductor or ground-check conductor where required, shielding for SHD routes and heavy-duty rubber sheath. Voltage class, conductor size, shield/ground design and mine standard should be confirmed before supply.
Marking on Cable
FARWALK CABLE – SHD Mining Cable – [standard] – [voltage] – [core x size] – [year] – [meter mark]
Cable Identification
- Phase, ground and ground-check conductors should be clearly identified according to mining cable type.
- Sheath marking should show voltage class, cable type and conductor size when required.
Standards
- ICEA S-75-381
- NEMA WC 58
- UL 1650
- CSA C22.2 No.96 where specified
Main Features
Ground-Check / Pilot Options
GC, PCG or CGC versions should be selected according to monitoring and grounding design.
Voltage and Jacket Review
For SHD Mining Cable, voltage class, conductor size, shield system and jacket toughness should match the mine operating environment.
Product Selection Guide
Mining Cable Type
Separate Type W, G-GC, MP-GC, SHD, SHD-GC, SHD-PCG and SHD-CGC before selecting construction.
Voltage Class
Confirm 2kV, 5kV, 8kV, 15kV, 25kV or higher project voltage before reviewing insulation and shield design.
Grounding / Monitoring
Select grounding, ground-check, pilot or shielded construction according to mine safety requirements.
Mechanical Duty
Check dragging, abrasion, bending radius, reeling, temperature and chemical exposure before selecting jacket material.
Technical Data Overview
| Size (AWG / kcmil) | Approx. OD (mm) | Approx. Weight (kg/km) | Current Rating @ 90°C (Amps) | Min. Bending Radius (mm) | Max. Cond. Resistance (Ω/km) |
| 3-Core SHD – 5000 Volts (Individually Shielded) | 3-Core SHD – 5000 Volts (Individually Shielded) | 3-Core SHD – 5000 Volts (Individually Shielded) | 3-Core SHD – 5000 Volts (Individually Shielded) | 3-Core SHD – 5000 Volts (Individually Shielded) | 3-Core SHD – 5000 Volts (Individually Shielded) |
| 4 AWG | 36.2 | 2150 | 95 | 220 | 0.85 |
| 2 AWG | 40.8 | 2850 | 130 | 245 | 0.54 |
| 1/0 AWG | 49.8 | 4250 | 175 | 300 | 0.34 |
| 2/0 AWG | 54.2 | 5080 | 200 | 325 | 0.27 |
| 4/0 AWG | 60.5 | 6850 | 260 | 365 | 0.17 |
| 250 kcmil | 65.8 | 8150 | 295 | 395 | 0.14 |
| 500 kcmil | 82.5 | 14250 | 475 | 495 | 0.07 |
