Shielded Mining Cable
SHD-style construction is reviewed where shielding, grounding and medium-voltage mine power safety are required.
SHD-CGC Mining Cable
SHD-CGC Mining Cable for mining, portable power and heavy-duty industrial routes.
SHD-CGC Mining Cable is used for mining and heavy-duty power routes where abrasion, flexibility, grounding, shielding and voltage class affect cable selection.
Product Overview
SHD-CGC Mining Cable should be selected according to the actual project route, not by product name alone. Before quotation, review equipment duty, voltage class, grounding or ground-check requirement, shielding, flexibility and abrasion exposure. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- surface and underground mining power routes
- portable mining equipment and trailing cable use
- mine feeder and heavy-duty industrial power supply
- abrasion, movement and mechanical-stress cable environments
Construction

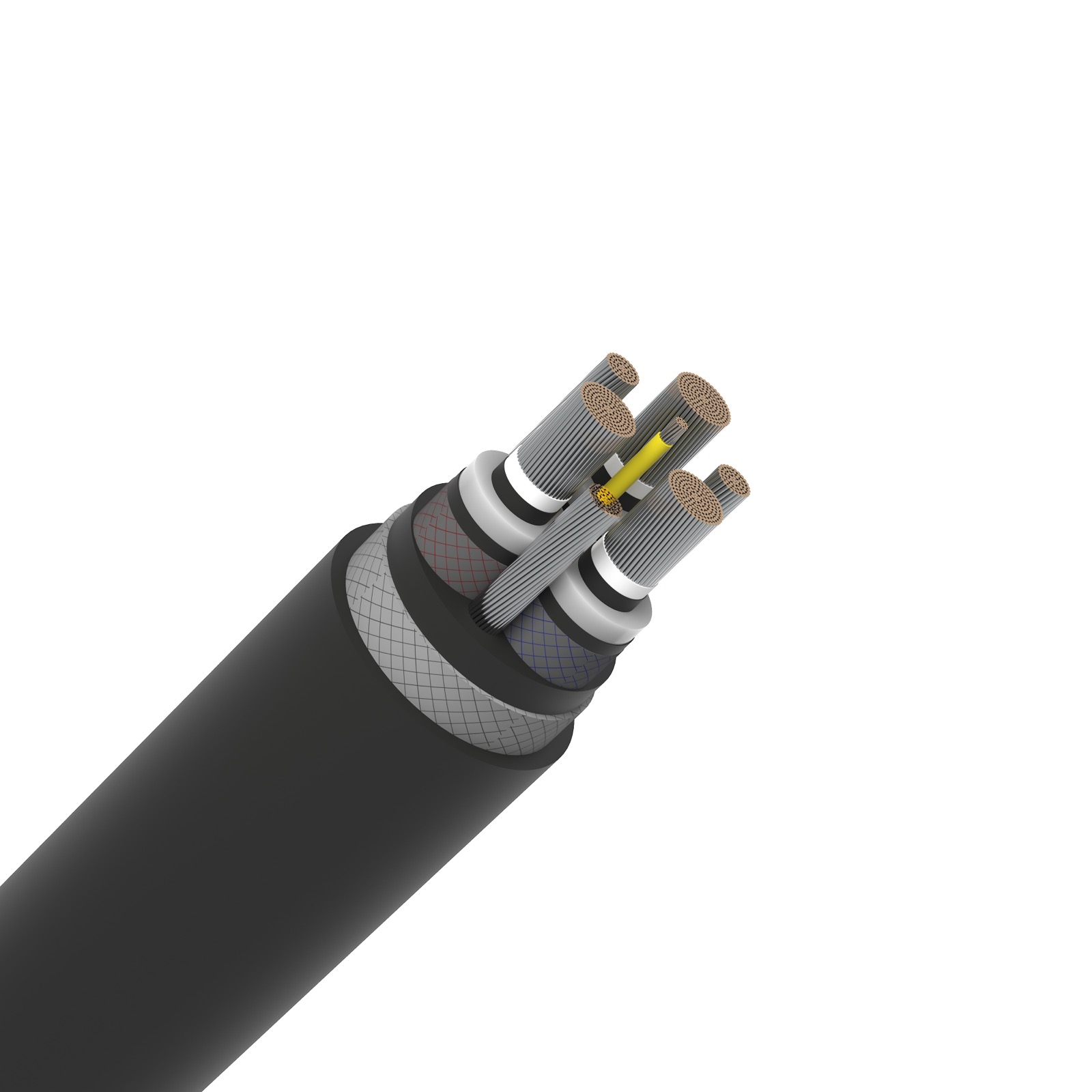

Flexible copper conductor construction with rubber insulation, ground conductor or ground-check conductor where required, shielding for SHD routes and heavy-duty rubber sheath. Voltage class, conductor size, shield/ground design and mine standard should be confirmed before supply.
Marking on Cable
FARWALK CABLE – SHD-CGC Mining Cable – [standard] – [voltage] – [core x size] – [year] – [meter mark]
Cable Identification
- Phase, ground and ground-check conductors should be clearly identified according to mining cable type.
- Sheath marking should show voltage class, cable type and conductor size when required.
Standards
- ICEA S-75-381
- NEMA WC 58
- UL 1650
- CSA C22.2 No.96 where specified
Main Features
Ground-Check / Pilot Options
GC, PCG or CGC versions should be selected according to monitoring and grounding design.
Voltage and Jacket Review
For SHD-CGC Mining Cable, voltage class, conductor size, shield system and jacket toughness should match the mine operating environment.
Product Selection Guide
Mining Cable Type
Separate Type W, G-GC, MP-GC, SHD, SHD-GC, SHD-PCG and SHD-CGC before selecting construction.
Voltage Class
Confirm 2kV, 5kV, 8kV, 15kV, 25kV or higher project voltage before reviewing insulation and shield design.
Grounding / Monitoring
Select grounding, ground-check, pilot or shielded construction according to mine safety requirements.
Mechanical Duty
Mechanical Duty Check dragging, abrasion, bending radius, reeling, temperature and chemical exposure before selecting jacket material.
Technical Data Overview
| Size (AWG / kcmil) | Approx. OD (mm) | Approx. Weight (kg/km) | Current Rating @ 90°C (Amps) | Ground Check Size (AWG) | Min. Bending Radius (mm) |
| 3-Core SHD-CGC – 15000 Volts (Center Ground Check) | 3-Core SHD-CGC – 15000 Volts (Center Ground Check) | 3-Core SHD-CGC – 15000 Volts (Center Ground Check) | 3-Core SHD-CGC – 15000 Volts (Center Ground Check) | 3-Core SHD-CGC – 15000 Volts (Center Ground Check) | 3-Core SHD-CGC – 15000 Volts (Center Ground Check) |
| 2 AWG | 48.5 | 4250 | 135 | 10 (Center) | 395 |
| 1/0 AWG | 59.2 | 5850 | 175 | 8 (Center) | 485 |
| 2/0 AWG | 63.5 | 6650 | 200 | 8 (Center) | 520 |
| 4/0 AWG | 70.8 | 8550 | 260 | 6 (Center) | 580 |
| 350 kcmil | 81.2 | 12250 | 365 | 4 (Center) | 665 |
| 500 kcmil | 90.5 | 15950 | 445 | 2 (Center) | 745 |
