Copper Conductor Performance
Copper conductors provide high conductivity, compact sizing and stable termination performance for power routes.

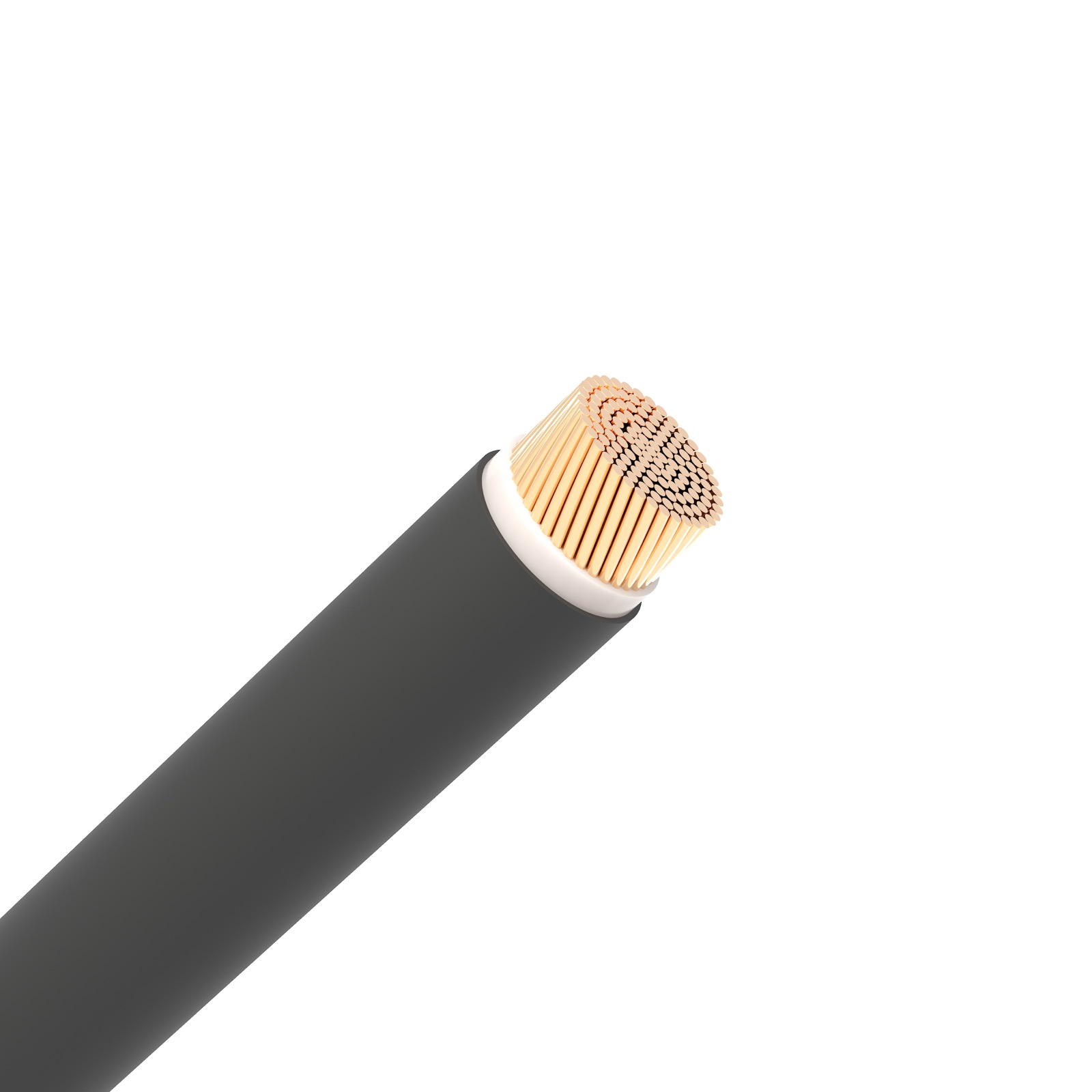

Copper Power Cable
Copper Power Cable for power power distribution and project cable selection.
Copper Power Cable is used for fixed power distribution routes where voltage grade, conductor material, insulation, sheath and installation conditions determine the final cable construction.
Product Overview
Copper Power Cable should be selected according to the actual project route, not by product name alone. Before quotation, review voltage class, conductor material, insulation system, armour or screen design, sheath route and installation condition. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- fixed low-voltage power distribution in buildings, plants and infrastructure projects
- main feeder, panel feeder and equipment power supply routes
- tray, duct, conduit or buried routes according to installation condition
- project supply requiring standard-based datasheet and quotation review
Construction
Copper conductor route; XLPE or PVC insulation according to voltage grade; optional armour and sheath according to installation condition. Final dimensions, electrical values and test requirements should follow the selected standard and project datasheet.
Marking on Cable
FARWALK CABLE – Copper Power Cable – [standard] – [voltage] – [core x size] – [year] – [meter mark]
Cable Identification
- Core identification can follow color or number marking according to standard and project requirement.
- Outer sheath color, voltage marking and meter marking can be reviewed before production.
Standards
- IEC 60502-1 / IEC 60502-2
- GB/T 12706
- BS / VDE / NFC routes where specified
Main Features
Load and Voltage Drop Review
Conductor size should be checked by current rating, voltage drop, short-circuit duty and installation environment.
Broad Project Fit
For Copper Power Cable, suitable for industrial, commercial, infrastructure and utility power distribution applications.
Product Selection Guide
Voltage Class
Start with the rated voltage; LV, MV, HV and EHV cables use different standards, tests and construction logic.
Installation Route
Confirm tray, duct, direct burial, tunnel, outdoor, indoor or underwater-related conditions before selecting armour and sheath.
Conductor / Core Choice
Review copper or aluminum, single-core or multicore construction by current rating, voltage drop and installation layout.
Fire / Mechanical Requirement
Select LSZH, fire-resistant, armoured, water-blocking or special sheath options only when the route requires them.
Technical Data Overview
| Area (mm²) | Insulation Thick. (mm) | Outer Sheath (mm) | Approx OD (mm) | Weight (kg/km) |
| 3 Core – Unarmoured Copper Cable (0.6/1kV) | 3 Core – Unarmoured Copper Cable (0.6/1kV) | 3 Core – Unarmoured Copper Cable (0.6/1kV) | 3 Core – Unarmoured Copper Cable (0.6/1kV) | 3 Core – Unarmoured Copper Cable (0.6/1kV) |
| 3 x 1.5 | 0.7 | 1.8 | 10.5 | 150 |
| 3 x 2.5 | 0.7 | 1.8 | 11.5 | 200 |
| 3 x 4 | 0.7 | 1.8 | 12.5 | 260 |
| 3 x 6 | 0.7 | 1.8 | 13.5 | 330 |
| 3 x 10 | 0.7 | 1.8 | 15.2 | 480 |
| 3 x 16 | 0.7 | 1.8 | 18.8 | 720 |
| 3 x 25 | 0.9 | 1.8 | 22.5 | 1150 |
| 3 x 35 | 0.9 | 1.8 | 23.5 | 1380 |
| 3 x 50 | 1.0 | 1.8 | 26.5 | 1820 |
| 3 x 70 | 1.1 | 1.9 | 30.8 | 2550 |
| 3 x 95 | 1.1 | 2.1 | 35.5 | 3520 |
| 3 x 120 | 1.2 | 2.1 | 39.2 | 4380 |
| 3 x 150 | 1.4 | 2.2 | 43.5 | 5450 |
| 3 x 185 | 1.6 | 2.4 | 48.2 | 6750 |
| 3 x 240 | 1.7 | 2.6 | 54.8 | 8850 |
| 3 x 300 | 1.8 | 2.8 | 60.5 | 11250 |
| 3 x 400 | 2.0 | 3.0 | 68.5 | 14550 |
| 4 Core – Unarmoured Copper Cable (0.6/1kV) | 4 Core – Unarmoured Copper Cable (0.6/1kV) | 4 Core – Unarmoured Copper Cable (0.6/1kV) | 4 Core – Unarmoured Copper Cable (0.6/1kV) | 4 Core – Unarmoured Copper Cable (0.6/1kV) |
| 4 x 1.5 | 0.7 | 1.8 | 11.2 | 180 |
| 4 x 2.5 | 0.7 | 1.8 | 12.5 | 240 |
| 4 x 4 | 0.7 | 1.8 | 13.5 | 320 |
| 4 x 6 | 0.7 | 1.8 | 14.8 | 420 |
| 4 x 10 | 0.7 | 1.8 | 16.8 | 620 |
| 4 x 16 | 0.7 | 1.8 | 20.5 | 920 |
| 4 x 25 | 0.9 | 1.8 | 24.5 | 1450 |
| 4 x 35 | 0.9 | 1.8 | 26.5 | 1850 |
| 4 x 50 | 1.0 | 1.8 | 29.8 | 2450 |
| 4 x 70 | 1.1 | 2.0 | 34.5 | 3450 |
| 4 x 95 | 1.1 | 2.1 | 39.5 | 4750 |
| 4 x 120 | 1.2 | 2.2 | 44.5 | 5950 |
| 4 x 150 | 1.4 | 2.3 | 48.5 | 7350 |
| 4 x 185 | 1.6 | 2.5 | 54.2 | 9150 |
| 4 x 240 | 1.7 | 2.7 | 61.5 | 11850 |
| 4 x 300 | 1.8 | 2.9 | 68.2 | 15150 |
| 4 x 400 | 2.0 | 3.1 | 76.5 | 19550 |
