Charging Pile / EV Charging Cable
Charging Pile / EV Charging Cable for EV charging equipment and charging station cable routes.
Charging Pile / EV Charging Cable is reviewed for EV charging and charging pile routes where flexibility, current rating, control cores and outdoor performance may be required.
Product Overview
Charging Pile / EV Charging Cable should be selected according to the actual project route, not by product name alone. Before quotation, review application environment, performance standard, construction route, installation condition and required project documents. Datasheet wording, compliance documents and final supply notes should stay aligned with the selected standard and installation conditions.
Applications
- EV charging pile and charging station cable routes
- AC or DC charging equipment connections where flexibility and current rating must be reviewed
- outdoor charging infrastructure requiring sheath, temperature and weather performance review
- projects requiring conductor size, control core and charging standard documentation
Construction

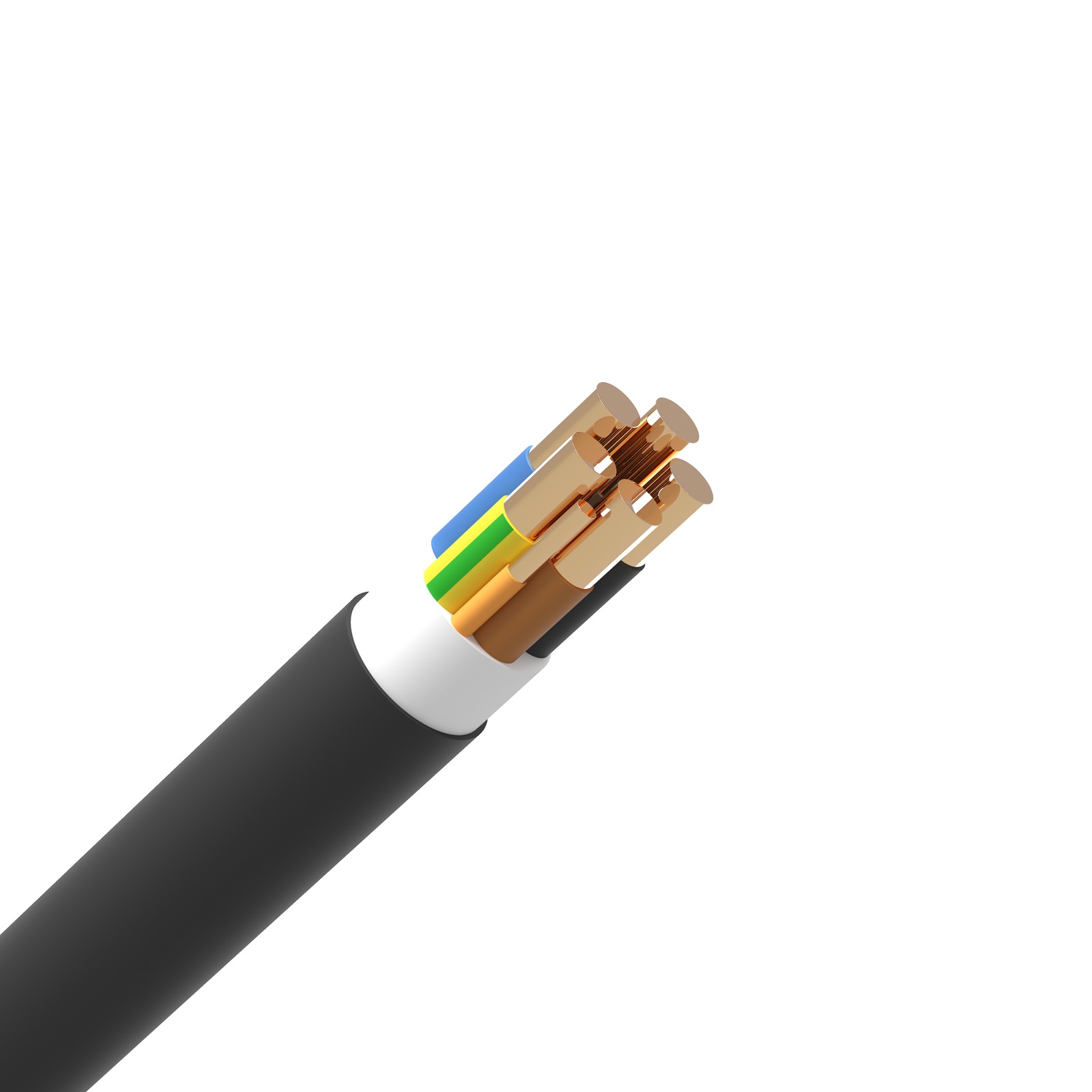

Flexible copper conductor cable route for EV charging equipment, with insulation, sheath, optional control cores and outdoor performance reviewed according to charger design and project standard.
Marking on Cable
FARWALK CABLE – Charging Pile / EV Charging Cable – [standard] – [voltage/rating] – [size] – [year] – [meter mark]
Cable Identification
- Cable identification, sheath color and core marking should follow the project application and standard route.
Standards
- IEC / BS / UL project standards
- application-specific technical requirements
Main Features
Outdoor and Handling Review
Sheath material should be reviewed for bending, abrasion, weather exposure and repeated user handling.
Standard & Size Route Check
For Charging Pile / EV Charging Cable, voltage, current, temperature and local EV charging standard should be confirmed before quotation.
Product Selection Guide
Application First
Confirm whether the project requires fire survival, flame retardance, LSZH, submersible, EV, rail or composite cable.
Performance Test
Match IEC 60331, IEC 60332, BS 6387, BS 7211 or other requested tests to the actual project requirement.
Installation Environment
Review heat, water, smoke, oil, movement, vibration or public-safety conditions before choosing materials.
Document Requirement
Confirm datasheet, test report, sample, marking and packing requirements before quotation.
Technical Data Overview
| Charging Type | Configuration (Power + Signal) | Approx. OD (mm) | Current (A) | Voltage Rating |
| 1-Phase AC (Type 1/2) | 3 x 2.5mm² + 1 x 0.5mm² | 11.5 | 16A | 450/750V AC |
| 1-Phase AC (Type 1/2) | 3 x 6.0mm² + 1 x 0.5mm² | 14.2 | 32A | 450/750V AC |
| 3-Phase AC (Type 2) | 5 x 2.5mm² + 1 x 0.5mm² | 13.8 | 16A | 450/750V AC |
| 3-Phase AC (Type 2) | 5 x 6.0mm² + 1 x 0.5mm² | 17.5 | 32A | 450/750V AC |
| DC Fast Charge (CCS/GB) | 2 x 35mm² + 1 x 25mm² + 2 x 1.5mm² | 28.5 | 125A | 1000V DC |
| DC Fast Charge (CCS/GB) | 2 x 50mm² + 1 x 25mm² + 2 x 1.5mm² | 32.0 | 200A | 1000V DC |
| DC Fast Charge (CCS/GB) | 2 x 70mm² + 1 x 25mm² + 2 x 1.5mm² | 36.5 | 250A | 1000V DC |
